Model SD-171 Screwdriver

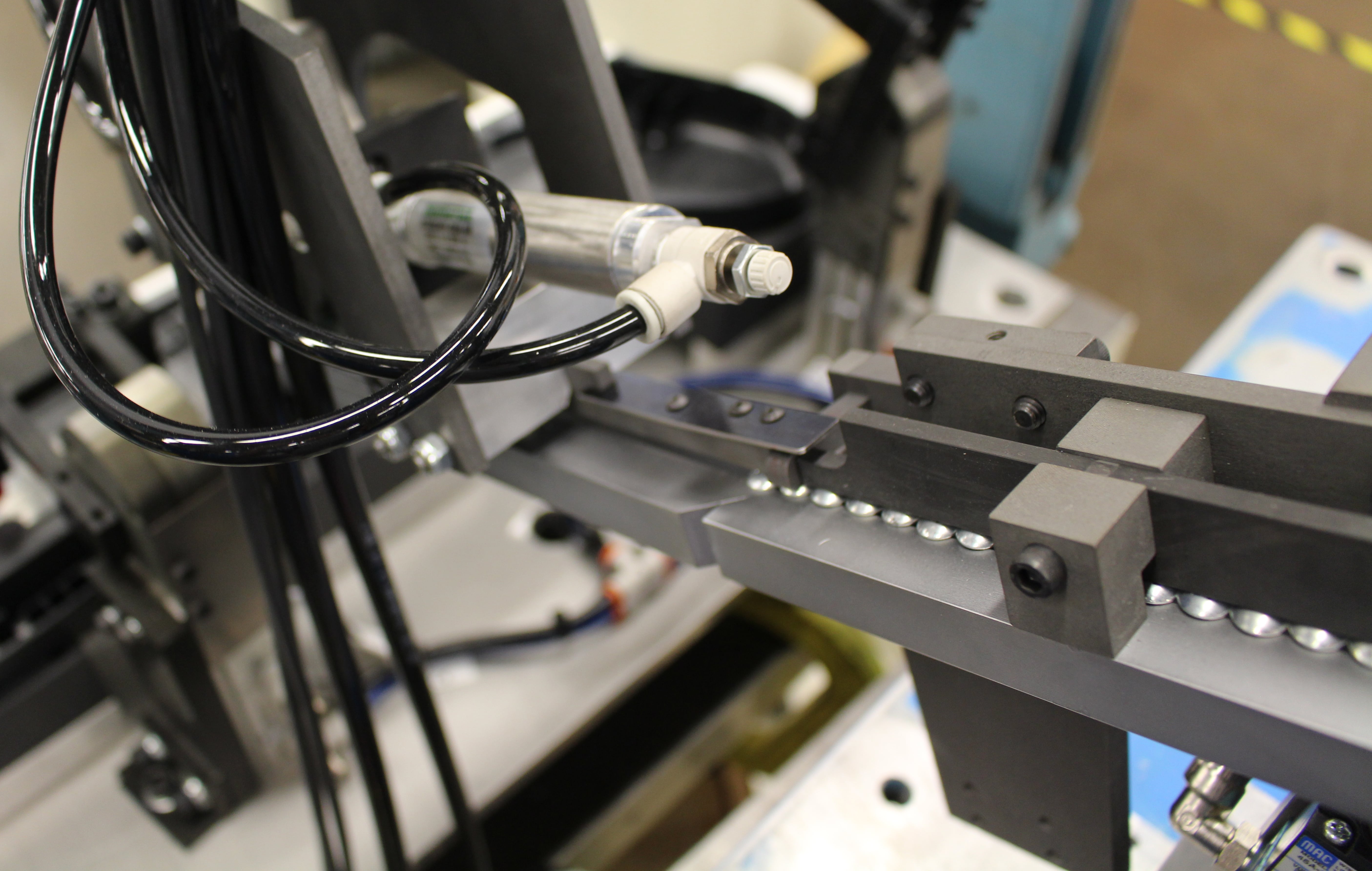

The Model SD-171 Screwdriver is ideally suited for Robotic applications when a fastener cannot be blow fed through a conveyor tube. The screwdriver head is attached to a Trav-A-Track and a parts escapement. The track is designed to carry a large number of fasteners from a discharge release device located at the end of a docking storage track having the same length as the Trav-A-Track. This design feature provides a quick refill of fasteners to the Trav-A-Track between cycle times in the assembly process. The transfer escapement places each fastener into the placement jaws. The jaws hold the screw shank until the fastener is driven in the workpiece. The driving head can provide wide range of driving speeds and torque capacities using either pneumatic or DC electric motors. Each head can be equipped to drive fasteners to a Torque or Depth setting.
Feed System Information | |
Feed System | Vibratory Feeder Bowl |
Bowl Size | 228.6 – 914mm (9 – 36 in.) |
Track | Incline Gravity Fed Track |
Escapement | Mechanically Linked Optional Air Escapement |
Piece Part Information | |
Shank Diameter | 2.84mm – 6.35mm (.112 in. – .250 in.) |
Shank Lengths | Max 38.1mm (1.5 in.) |
Head Diameter | Max 14mm (0.56 in.) |
Contains all options from base head | |
100 Series Screw/Nut Driving Head |
