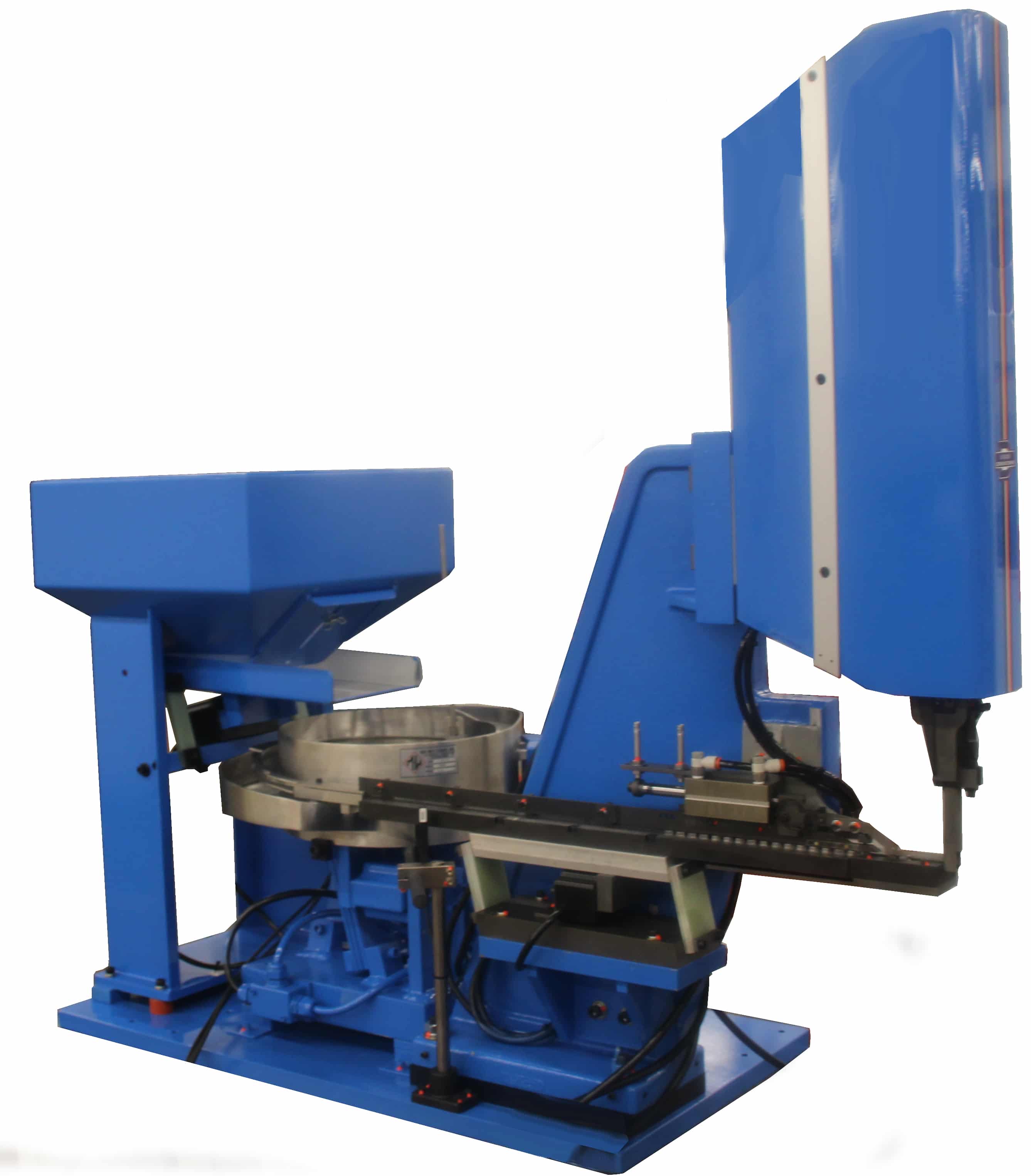

SD-127 Nut-Runner with Extended Throat/Vibratory Feeder Bowl

Fully automatic and equipped with column structure to provide an extended throat reach for the driving head. The vibratory bowl feeder varies in size to suit the fasteners being fed. A horizontal vibratory feed track feeds the fasteners to a transfer escapement that places each fastener into the screwdriver head’s placement jaws. The placement jaws hold the fastener’s threads in position until the fastener is engaged in the workpiece. The screwdriver head has built-in sensing to confirm proper insertion of each fastener into the workpiece. The baseplate size is determined by the size of the bowl feeder system. This model is ideally suited for an automated assembly systems.

Request a Quote Download Product PDF

Product Specifications
Shank Diameter 2.2 – 19.1 mm
(#2 – 3/4 in.)
Shank Lengths Max 101.6 mm (4.0 in.)
Head Diameter Max 63.5 mm (2.5 in.)

Hex Nuts: max 17.2 mm
(0.68 in.)

Disc Shaped Parts Max 63.5 mm dia.
(2.5 in. dia.)
Feed System Information
Feed System Vibratory Feeder Bowl

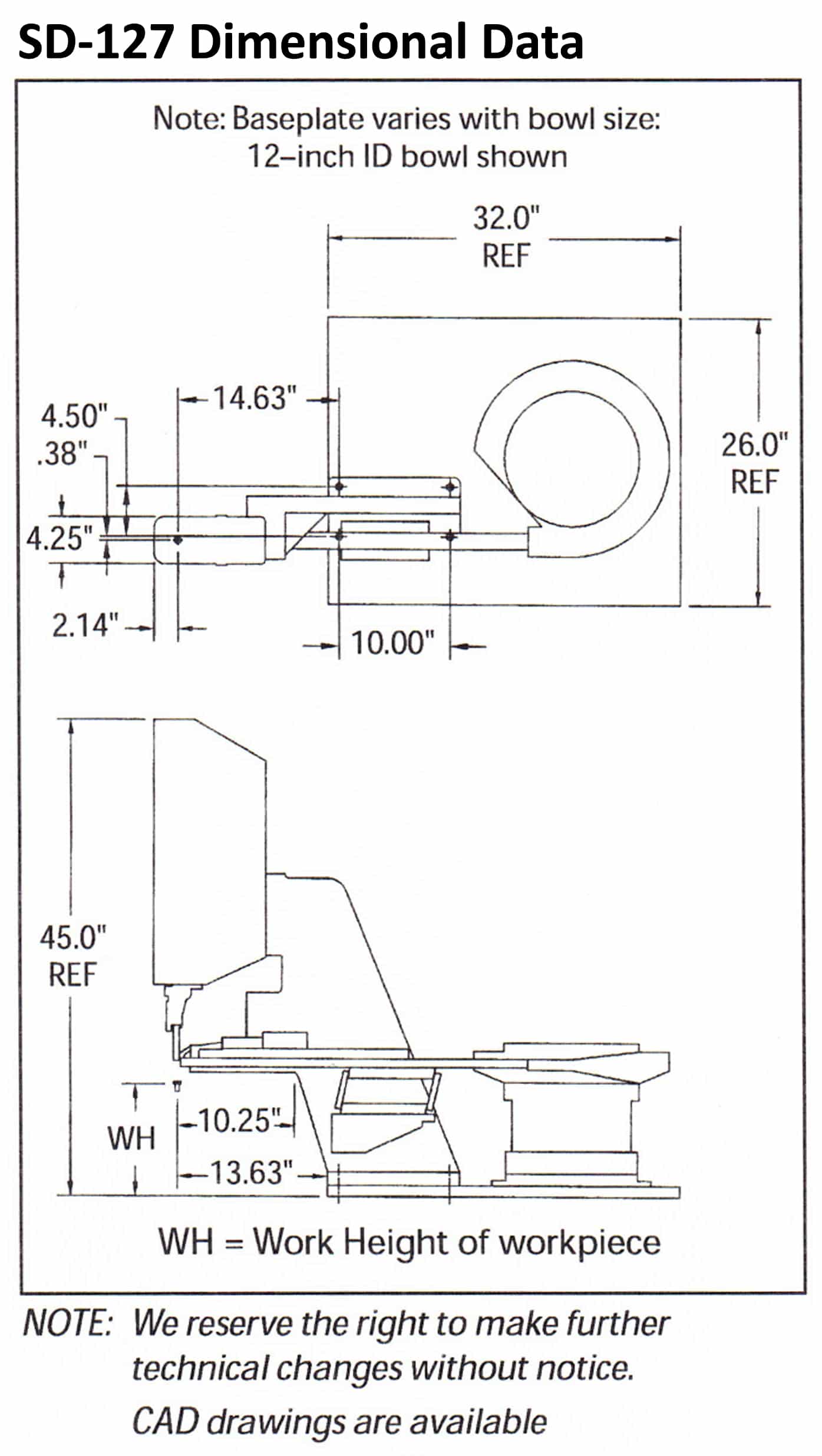

Bowl Size 228.6 – 914.4 mm
(9 – 36 in.)
Track Vibratory Inline/Extended
Throat
Escapement Transfer Escapement
Contains all options from base head
100 Series Screw/Nut Driving Head
