SD-122 Nut-Runner with Horizontal Driver/Vibratory Feeder Bowl

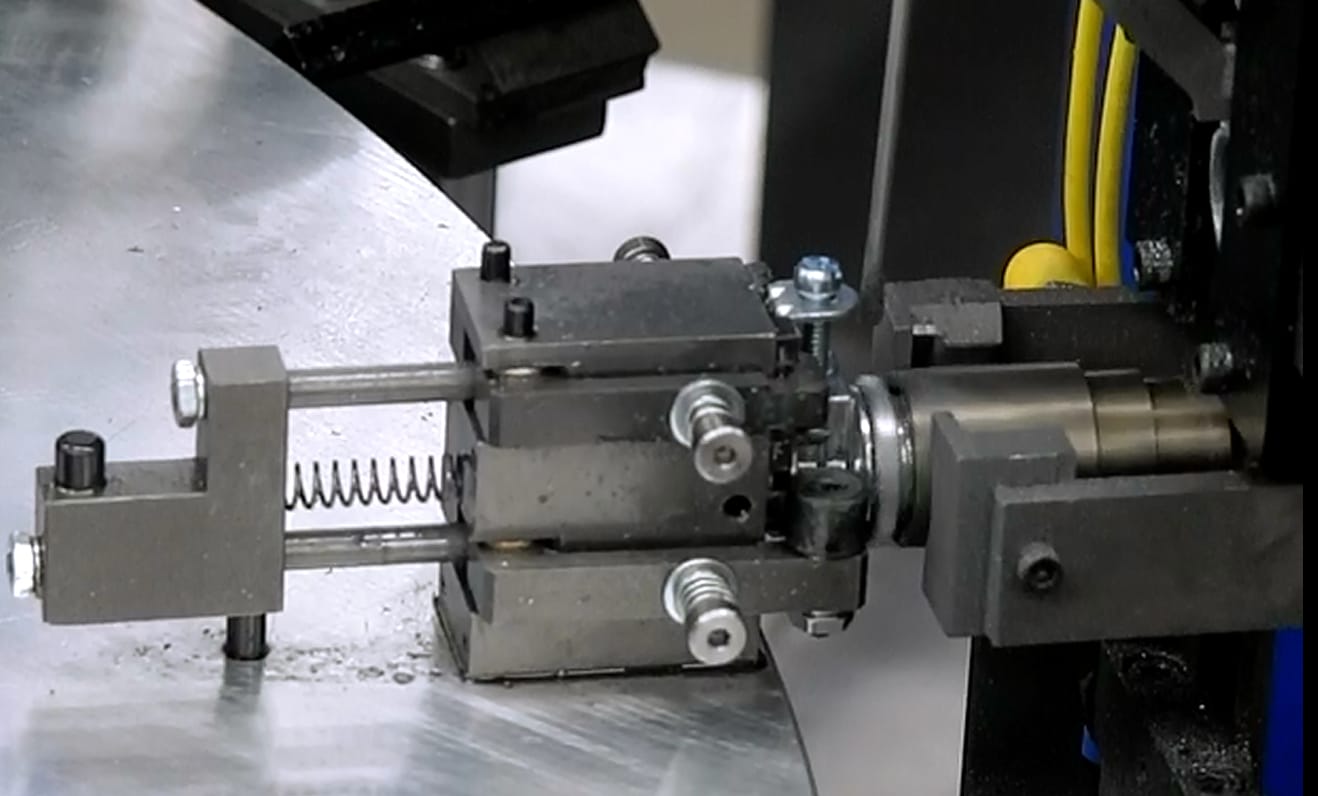

This model drives fasteners for horizontal assembly applications. The screwdriver head can also be mounted at a specific angle if required. The screwdriver is fully automatic and equipped with a vibratory bowl feeder system. Several methods maybe used to convey the fasteners from the bowl feeder to the transfer escapement due to the fastener’s geometry. (1), a horizontal vibratory feed track, (2), an inclined steel track, (3), a gravity or blow feed tube. The transfer escapement places each fastener into the screwdriver head’s placement jaws. The placement jaws hold the fastener’s threads in position until the fastener is engaged in the workpiece. The screwdriver head has built-in sensing to confirm proper insertion of each fastener into the workpiece. The baseplate size is determined by the size of the bowl feeder system. This model is ideally suited for automated assembly systems.

Request a Quote Download Product PDF

Product Specifications
Shank Diameter 2.2 – 6.4 mm
(#2 – 1/4 in.)
Shank Lengths Max 50.8 mm (2.0 in.)
Head Diameter Max 14 mm (0.55 in.)

Hex Nuts: max 17 mm
(0.67 in.)

Feed System Information
Feed System Vibratory Feeder Bowl
Bowl Size 153 – 914.4 mm
(6 – 36 in.)
Track Incline, Inline, or Drop Tube
Escapement Transfer Escapement
Contains all options from base head
100 Series Screw/Nut Driving Head
