Automatic Feeding and Insertion of Coil Thread Insert

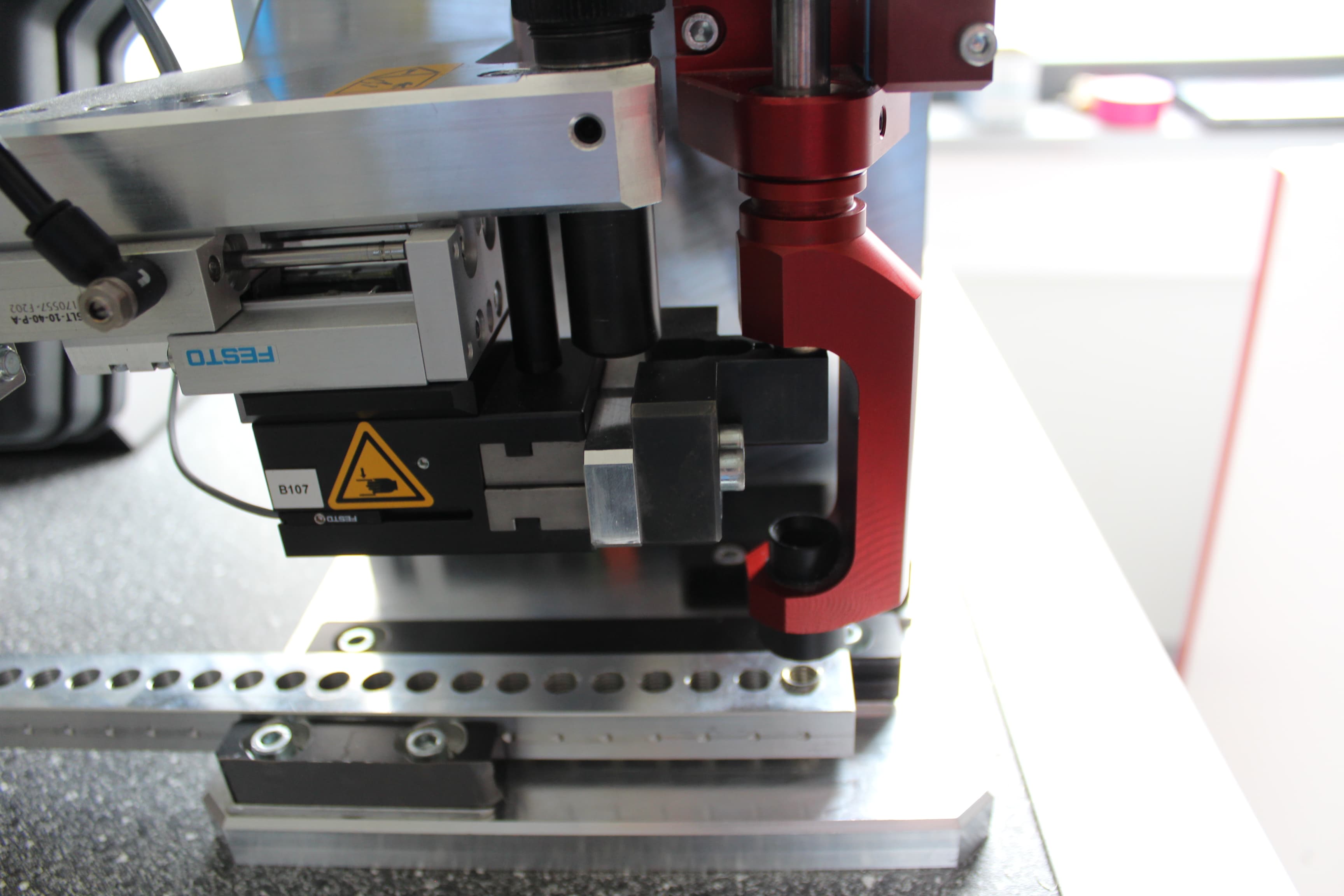

Based on a proven series of automatic screwdriving systems from Stöger Automation, an automatic screwdriver has been developed to feed and drive coil thread inserts automatically as bulk material. Designed especially for serial production, it’s used wherever high cycle times and process reliability are needed. The integrated over stroke also enables driving into hard-to-reach screw locations with interfering edges. Fasteners are fed through a flexible hose, thus magazines or strips are not needed. This enables the screwdriving unit to be operated in locations that are difficult to reach, as well. Plus, feeding the coil thread inserts as bulk material significantly reduces costs. The DGS also offers the advantage of being able to process coil thread inserts independent of position, and it can be used in robotic systems and on positioning axes, too.
Technical Data
Dimensions and weight | |
Length | approx. 800mm |
Width | 200mm |
Depth | 220mm |
Weight | 15kg |
Overhang | 90mm |
Strokes | |
Headstroke | 50mm |
Bithub | 160mm |
