Model AP-110 Part Placer With Track And Vibratory Feeder Bowl

Model AP-110 Part Placer

The Model AP-110 Part Placer is ideally suited for automated assembly systems. It is fully automatic and equipped with a vibratory bowl feed system, inclined hardened feed track, transfer escapement, support column, and interlocking controls. The placement head has built-in sensing to confirm proper placement of each piecepart. The placement jaws hold the piecepart in position until the piecepart is engaged in the workpiece. The AP-110 provides a pressing force of 38.6 kilograms (85 pounds). A larger cylinder can be installed to increase the pressing force to 79 kilograms (175 pounds) depending on the placement force requirements. The baseplate size is determined by the size of the vibratory bowl feeder. Control options can be selected to meet the requirement of each application.

Request a Quote Download Product PDF

Feed System Information
Feed System Vibratory Feeder Bowl
Bowl Size 228.6 – 914mm
(9-36 in.)
Track Incline Gravity Fed Track
Escapement Mechanically Linked Standard
Optional Air Escapement

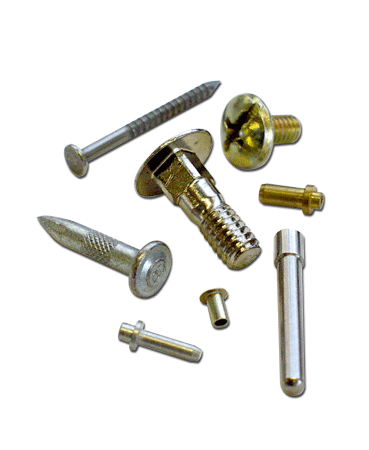

Piece Part Information
Shank Diameter 2.84mm – 6.35mm
(.112 in. – .250 in.)
Shank Lengths Max 38.1mm
(1.5 in.)
Head Diameters Max 14mm
(.56 in.)
Contains all options from base head
