Model SD-120 Screwdriver

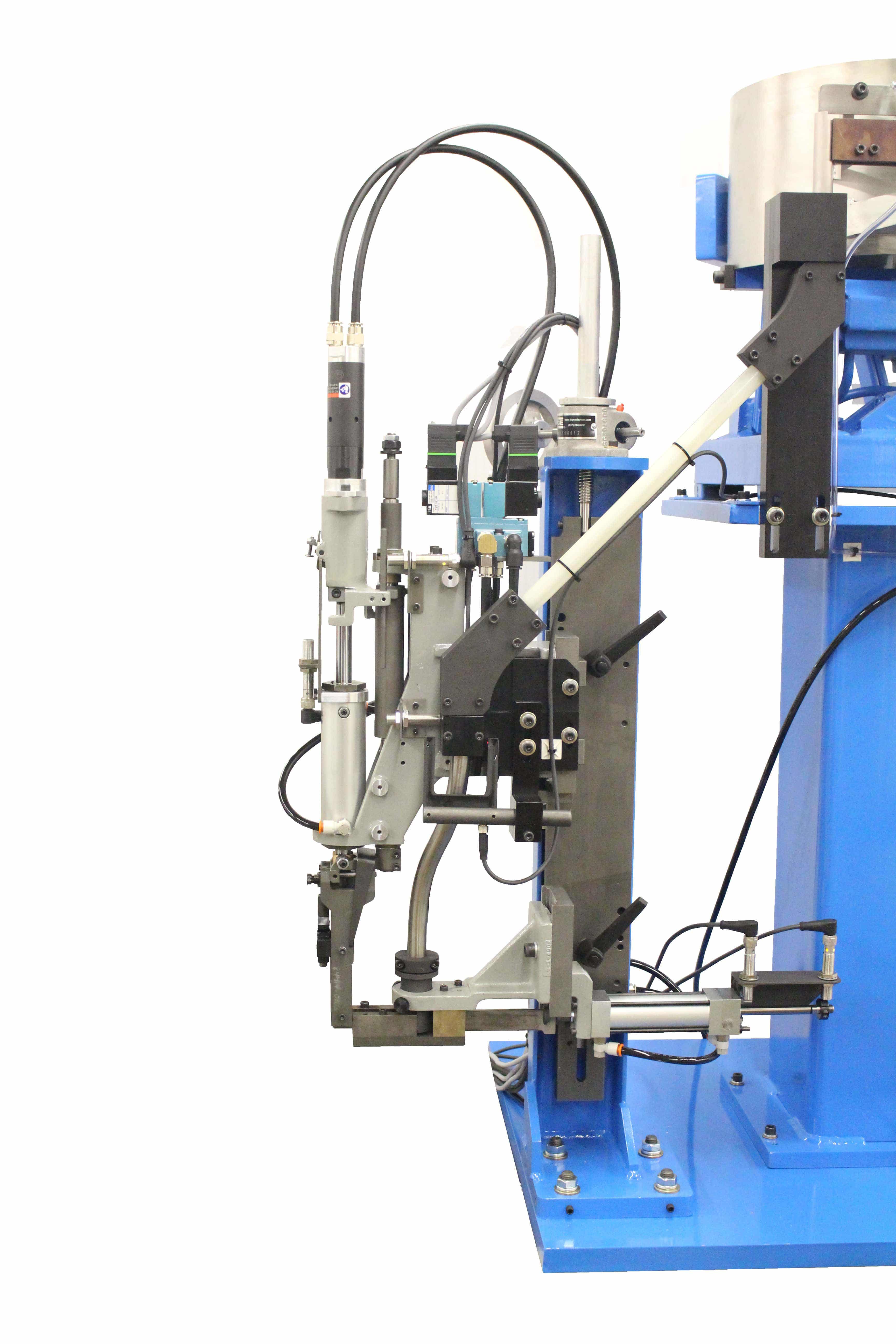

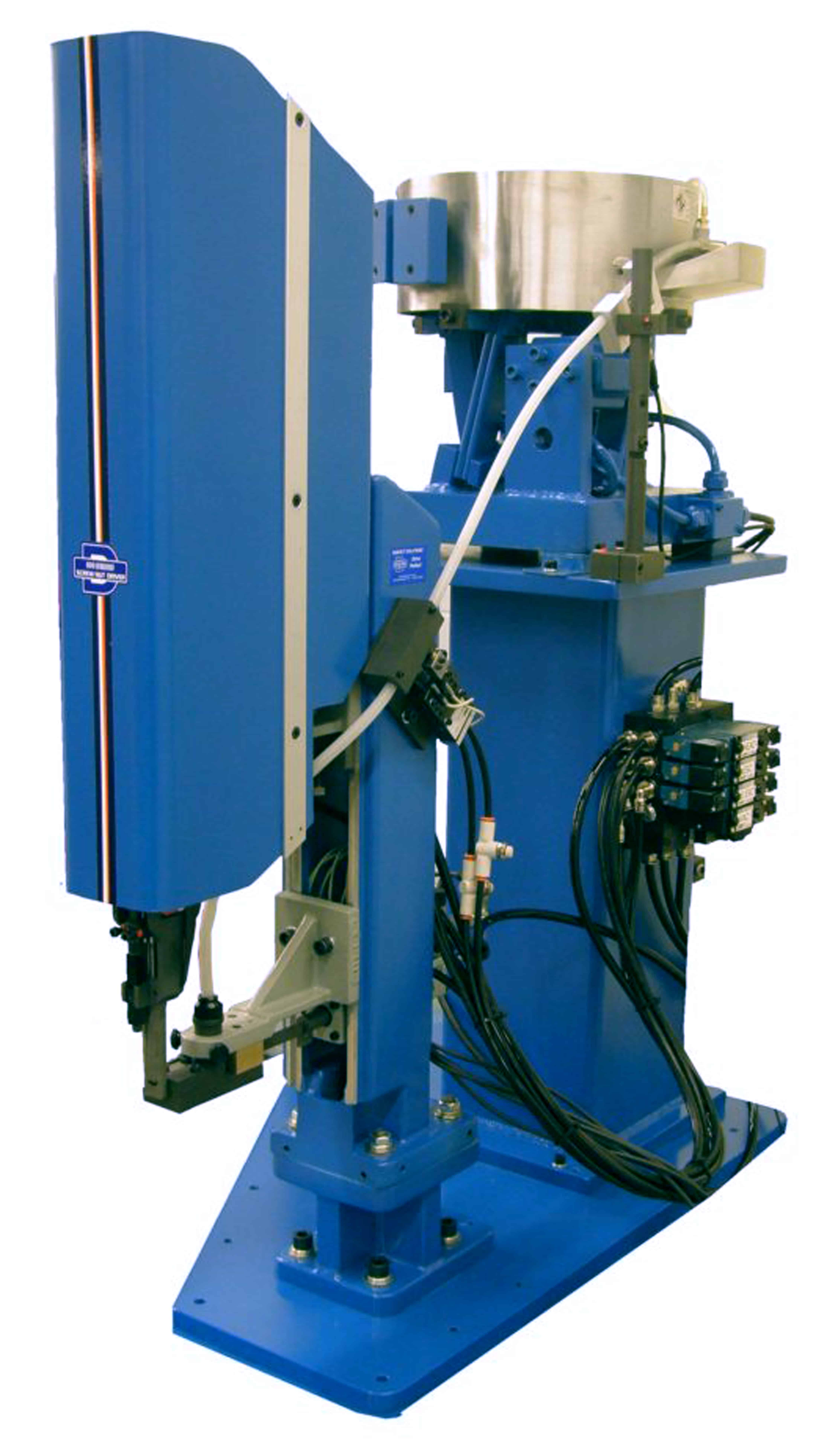

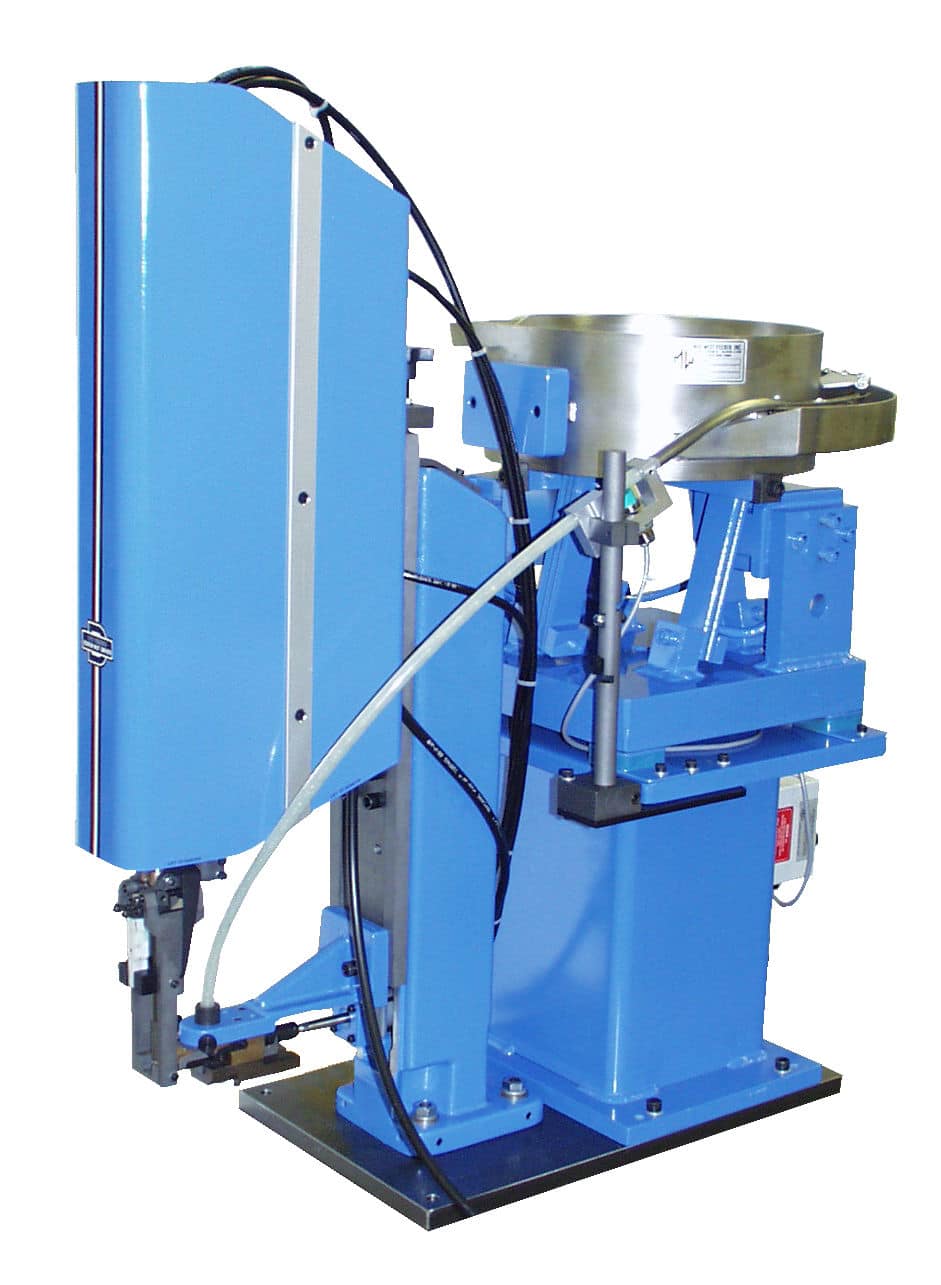

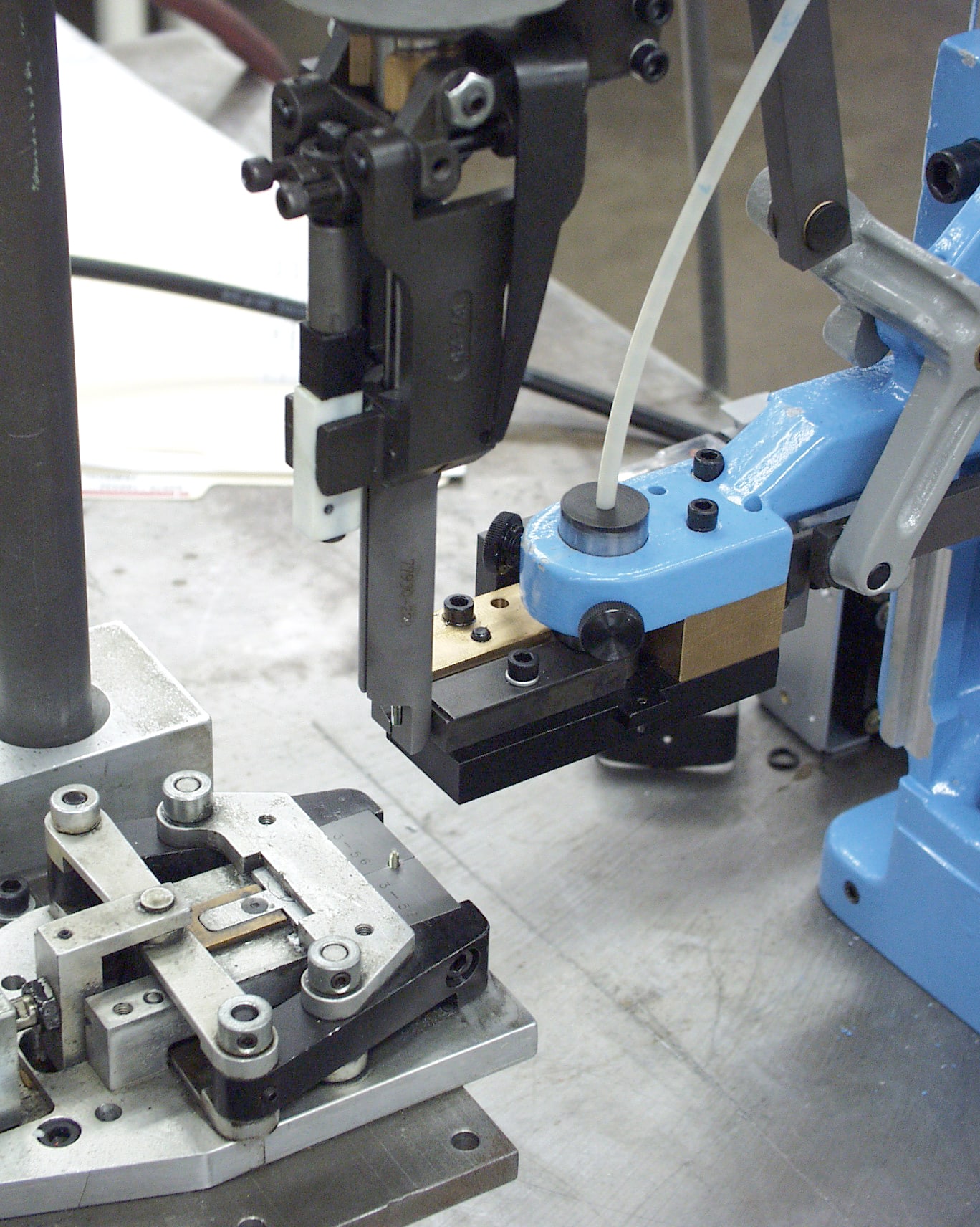

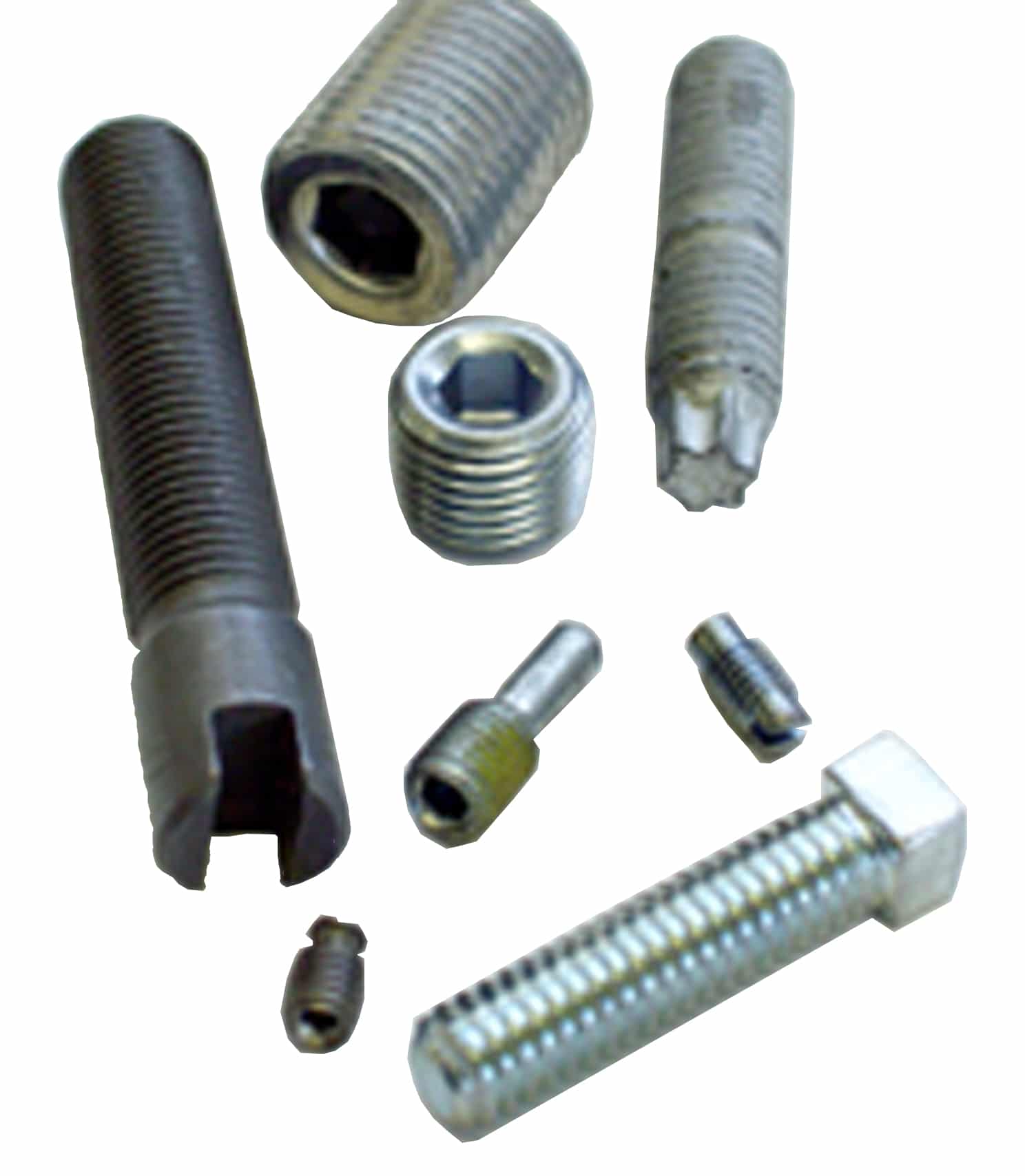

The Model SD-120 Screwdriver is ideally suited for headless fasteners and threaded studs for a broad range of assembly applications. The Screwdriver provides accuracy and dependability required in an automatic process. The SD-120 Screwdriver is fully automatic and equipped with a vibratory feeder bowl, a gravity feed tube, support column, and a cross shuttle escapement. The escapement transfers and positions each fastener into the placement jaws of the screwdriving head. The placement jaws hold the fastener in position until the fastener is engaged in the workpiece. The Screwdriver can be equipped to drive fasteners to a Torque or Depth setting. The screwdriver head has built-in sensing to confirm proper insertion of each fastener into the workpiece. The baseplate size is determined by the size of the feeder bowl system. The driving head can provide wide range of driving speeds and torque capacities using either pneumatic or DC electric motors.

Request a Quote Download Product PDF

Feed System Information
Feed System Vibratory Feeder Bowl

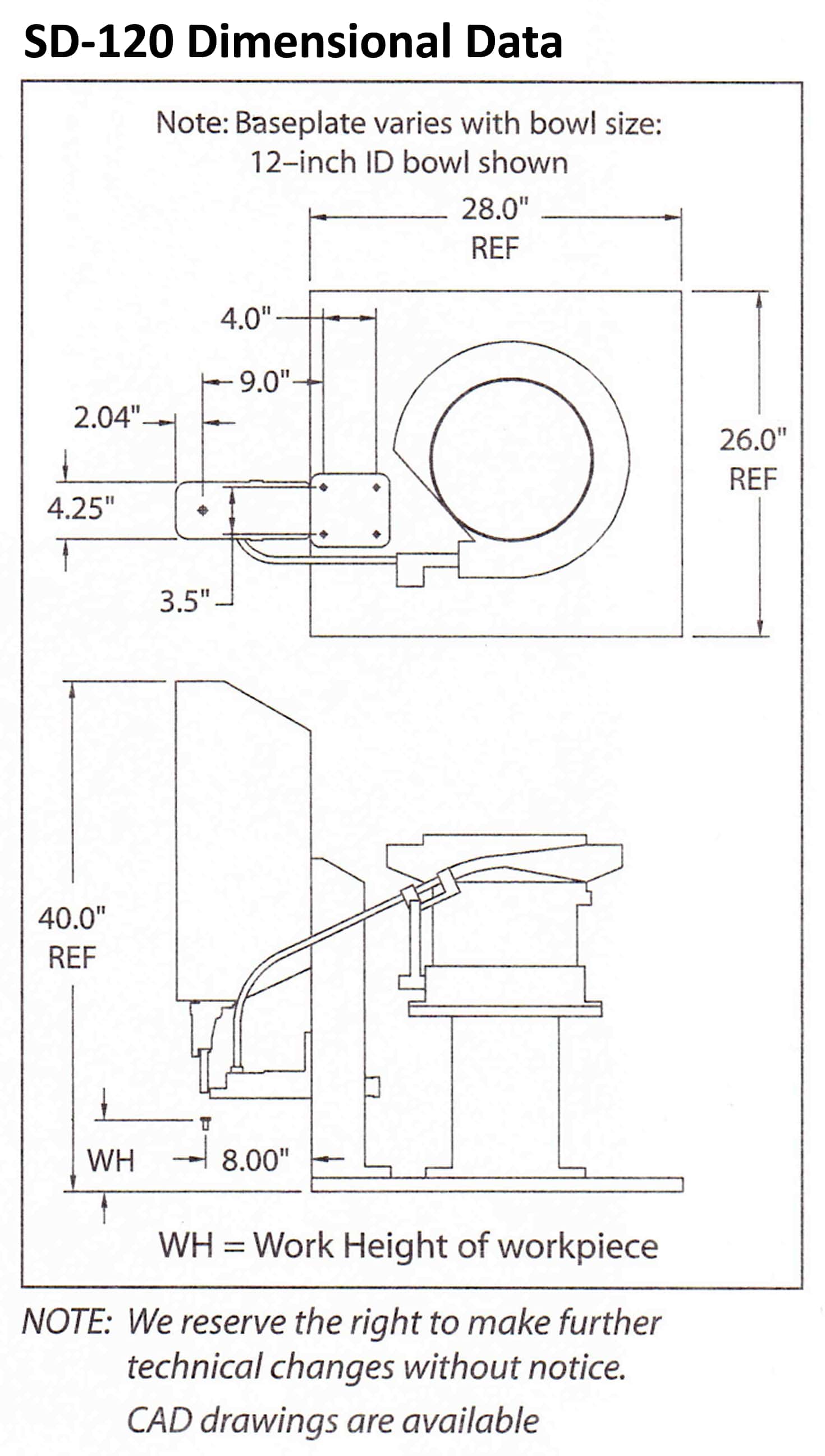

Bowl Size 228.6 – 914mm
(9 – 36 in.)
Track Tube Gravity or Blow Tube
Shuttle Style Escapement Mechanically Linked Optional Air Escapement
Piece Part Information
Shank Diameter 2.2mm – 22mm
(.08 in. – .87 in.)
Shank Lengths Max 50.8mm
(2.0 in.)
Contains all options from base head
100 Series Screw/Nut Driving Head
