Model SD-115 Screwdriver

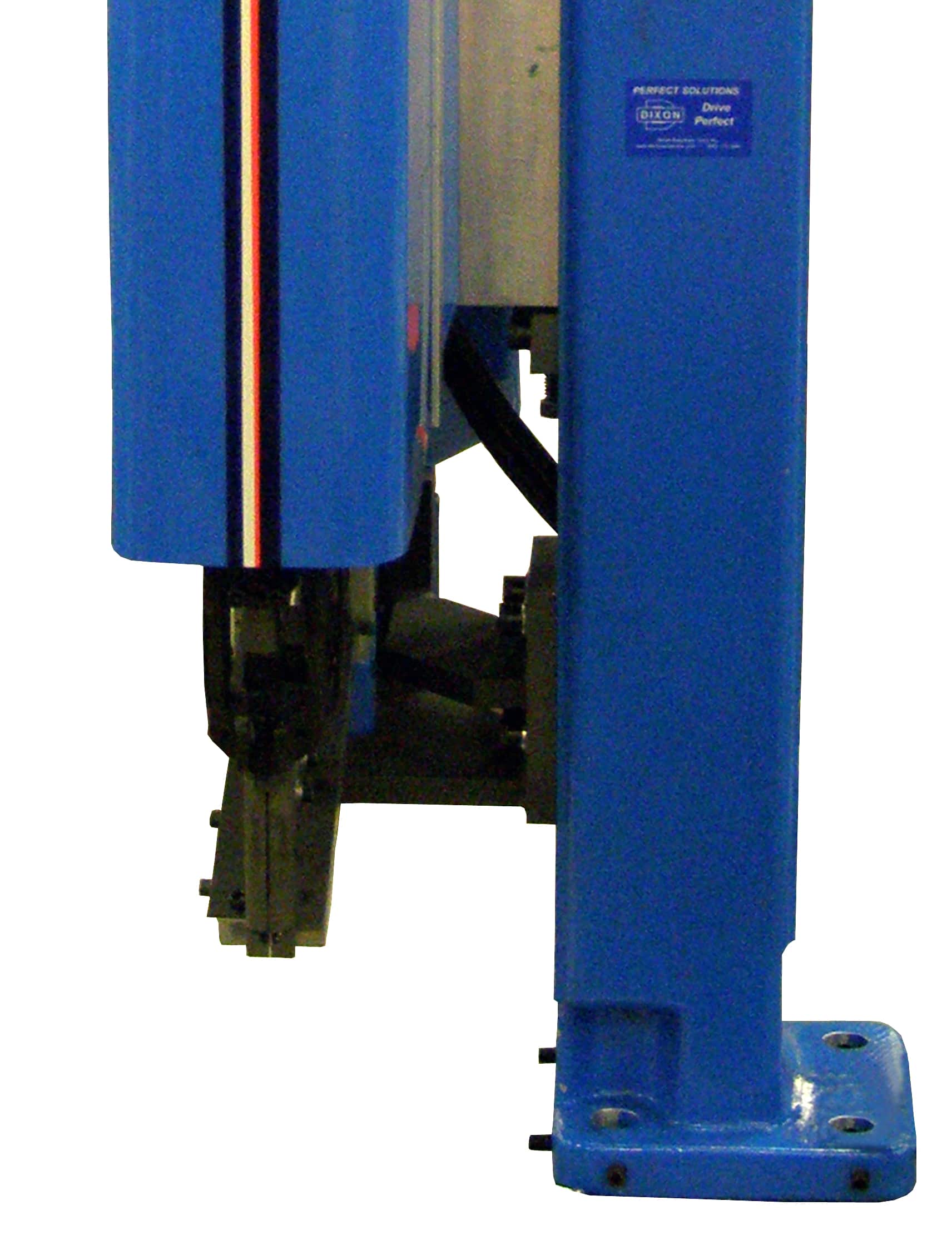

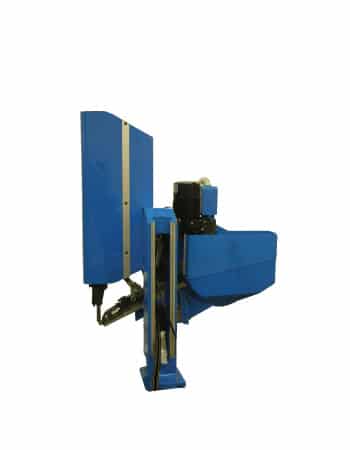

The Model SD-115 Screwdriver is ideally suited for automated screwdriving applications. The driver can be tooled for a broad range of fasteners. The SD-115 Screwdriver is fully automatic and equipped with a rotary hopper, hardened inclined steel track and a transfer escapement. The track is mounted alongside the support column for easy access. The escapement transfers and positions each fastener into the placement jaws of the screwdriving head. The placement jaws hold the fastener’s shank in position until the fastener is engaged in the workpiece. The screwdriver head has built-in sensing to confirm proper insertion of each fastener into the workpiece. The driving head can provide wide range of driving speeds and torque capacities using either pneumatic or DC electric motors. Each head can be equipped to drive fasteners to a Torque or Depth setting. The track mounting on the side of the column allows for a deeper work area under the screwdriving spindle.

Request a Quote Download Product PDF

Feed System Information
Feed System Rotary Drum Hopper
2458 cubic cm.
(150 cubic in.)
Track Incline Gravity Fed Track
Escapement Mechanically Linked
Optional Air Escapement
Piece Part Information
Shank Diameter 2.8mm – 6.35mm
(.110 – .25 in.)
Shank Lengths Max 25.4mm
(1.0 in.)
Head Diameters Max 14mm
(.55 in.)
Contains all options from base head
100 Series Screw/Nut Driving Head
