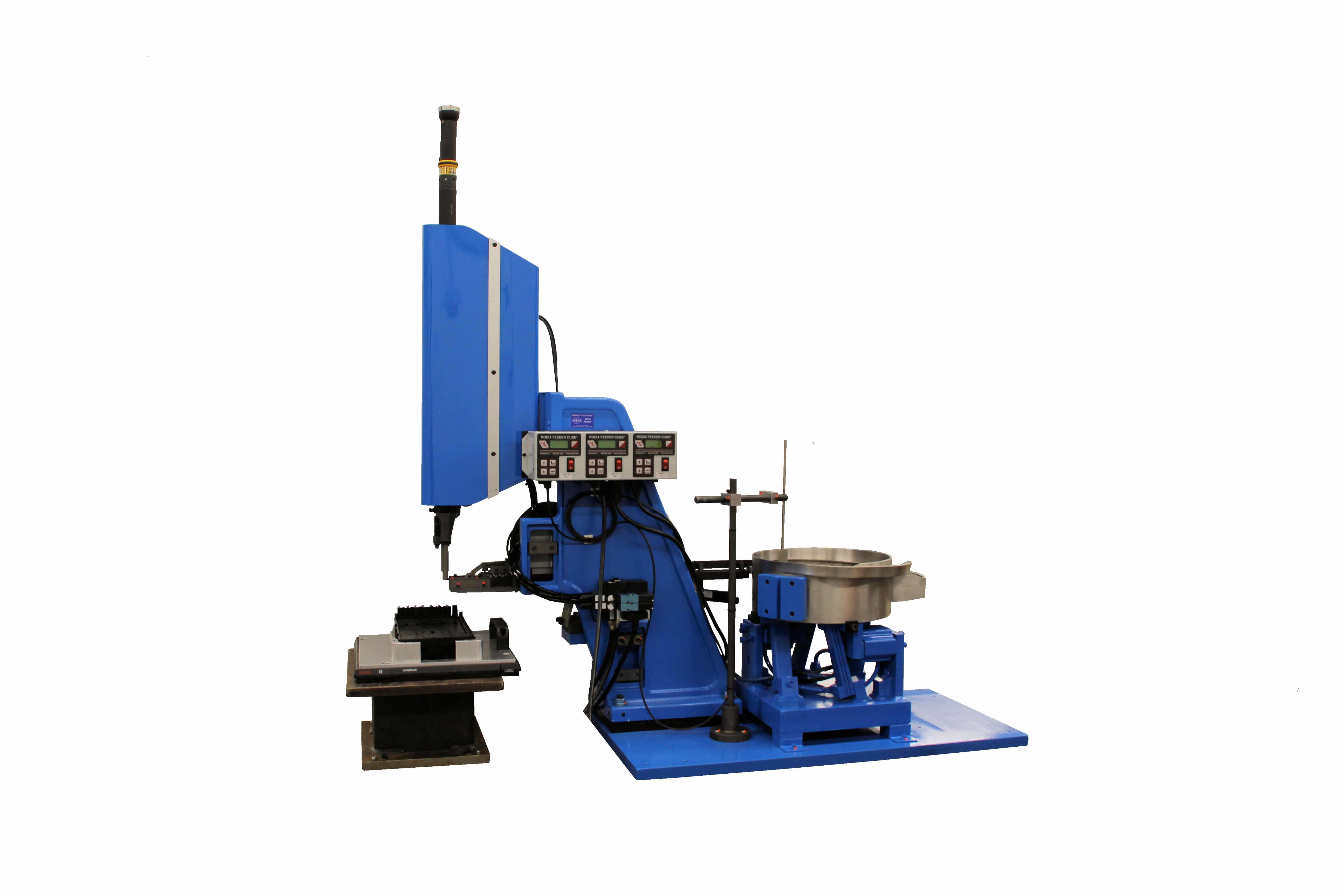

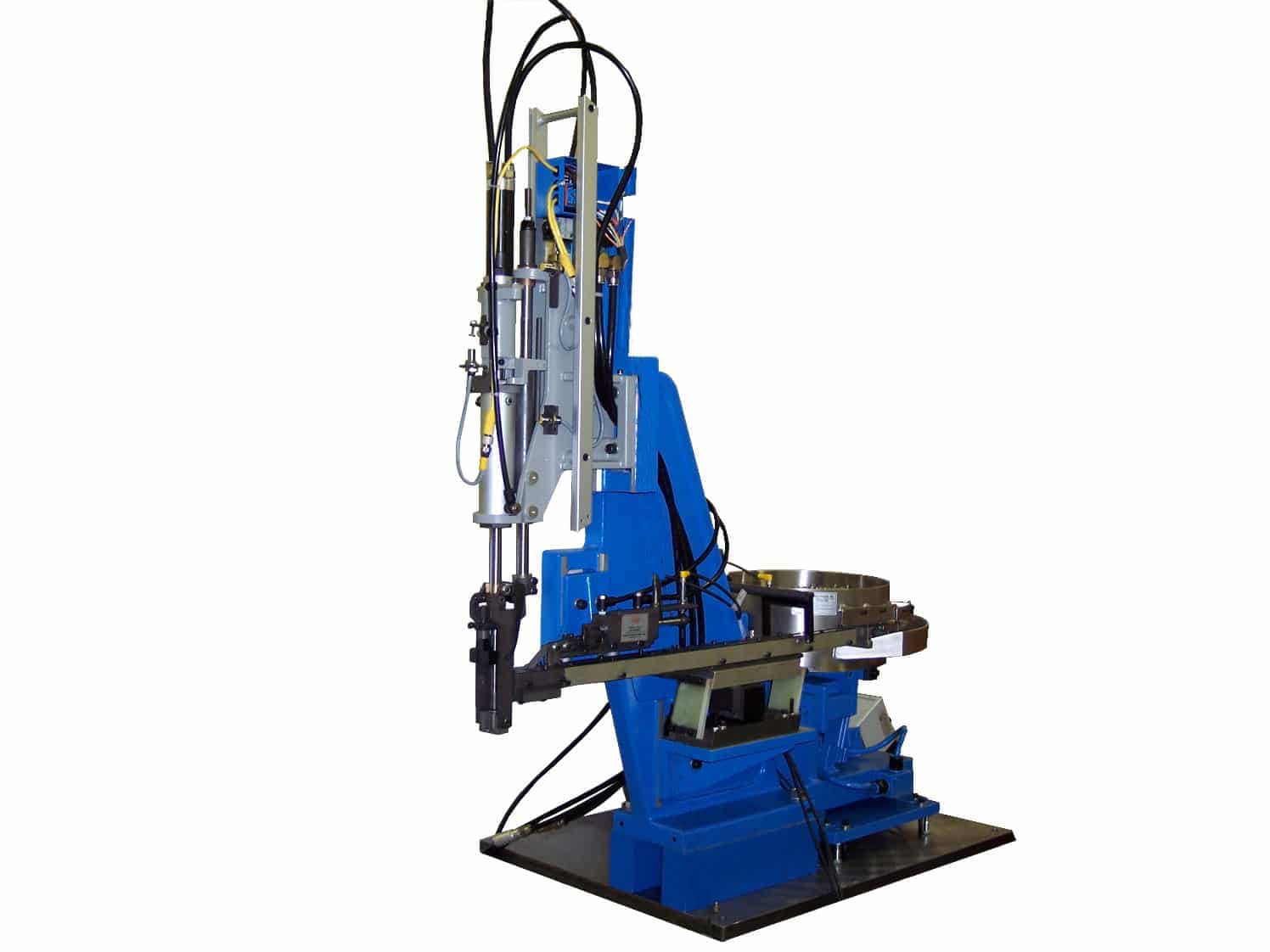

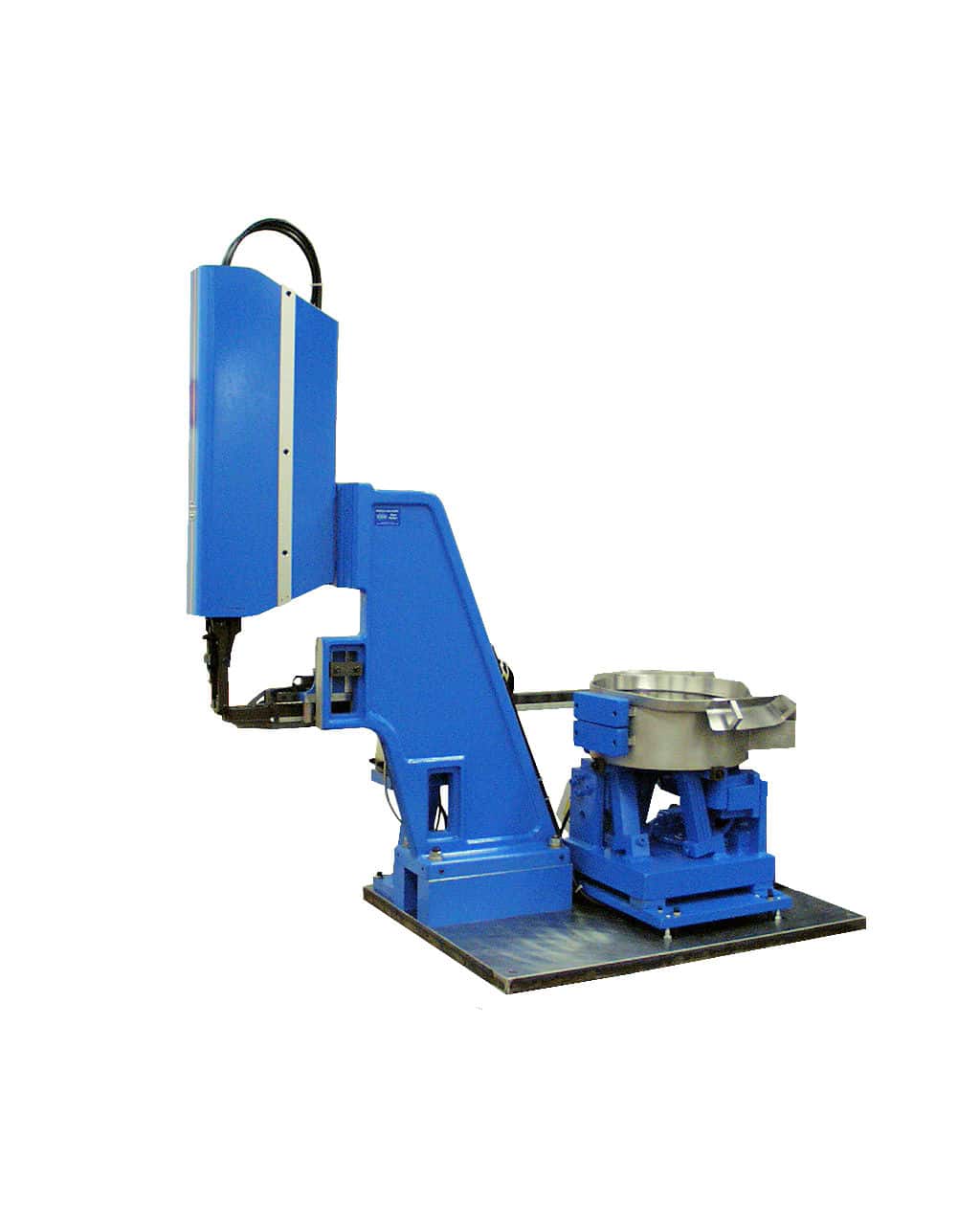

Model SD-127 Screw/Nut Driver
The SD-127 Screw/Nut Driver is designed for automated driving applications. The SD-127 Screw/Nut Driver, provides an extended spindle reach for screwdriving applications. The SD-127 Driver is fully automatic and equipped with a column structure to provide an extended throat reach for the driving head. The vibratory feeder bowl varies in size to suit the fasteners being fed to the driver. A horizontal vibratory feed track moves the fasteners to a transfer escapement which places each fastener into the driving head’s placement jaws. The placement jaws hold the fastener’s shank in position until the fastener is engaged in the workpiece. The driver head has built-in sensing to confirm proper insertion of each fastener into the workpiece. The baseplate size is determined by the size of the feeder bowl system. The driving head can provide wide range of driving speeds and torque capacities using either pneumatic or DC electric motors. Each head can be equipped to drive fasteners to a Torque or Depth setting.
Feed System Information | |
Feed System | Vibratory Feeder Bowl |
Bowl Size | 228.6 – 914 mm (9 – 36 in.) |
Track | Incline Vibratory Fed Track |
Escapement | Air Escapement |

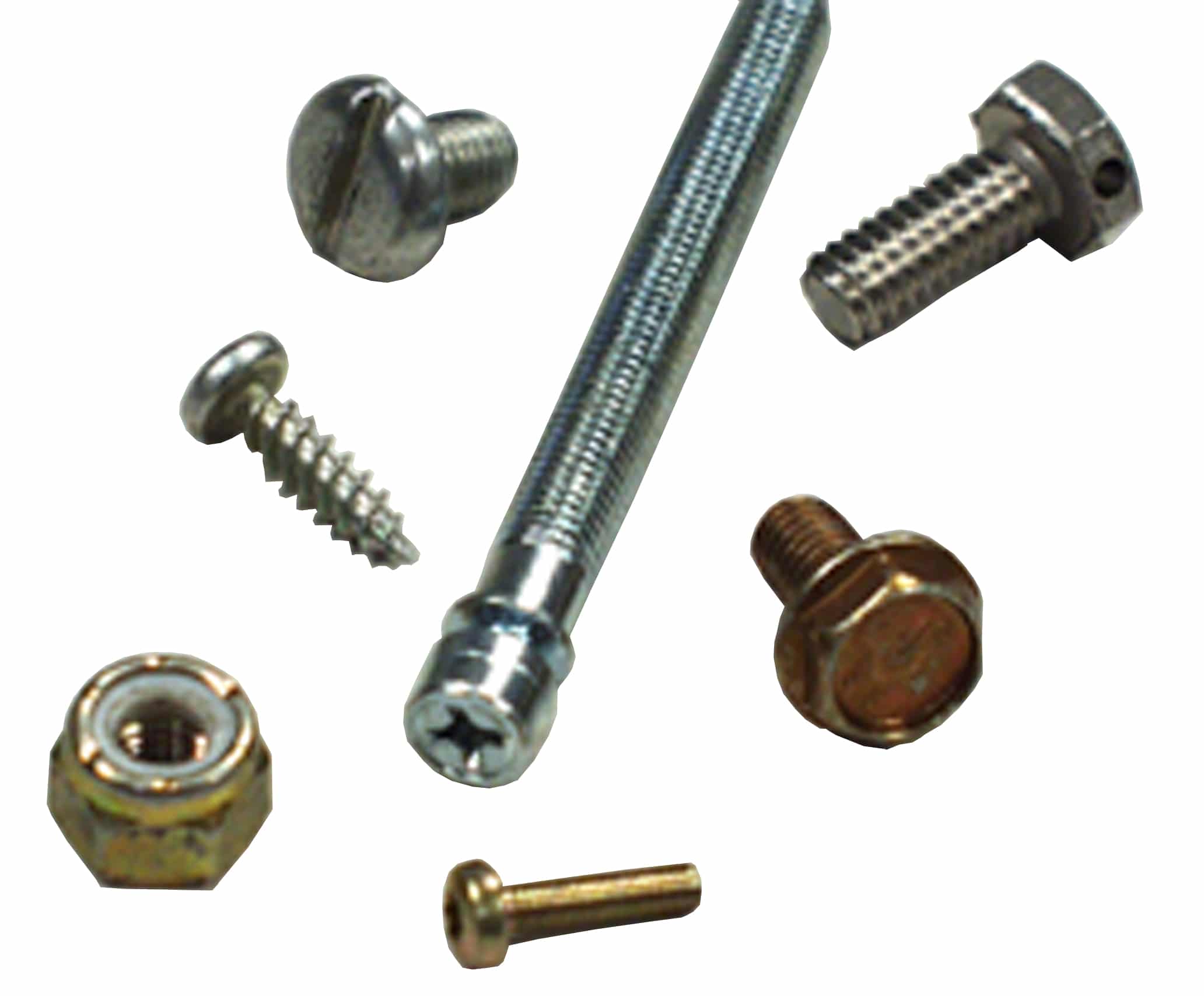

Piece Part Information | |
Shank Diameter | 2.84mm- 6.35mm (.112 in. – .250 in.) |
Shank Lengths | Max 101.6mm (4.0 in.) |
Head Diameter | Max 25.4mm (1.0 in.) |
Nut Across Flats | 17mm (.68 in.) |
Contains all options from base head | |
100 Series Screw/Nut Driving Head |
