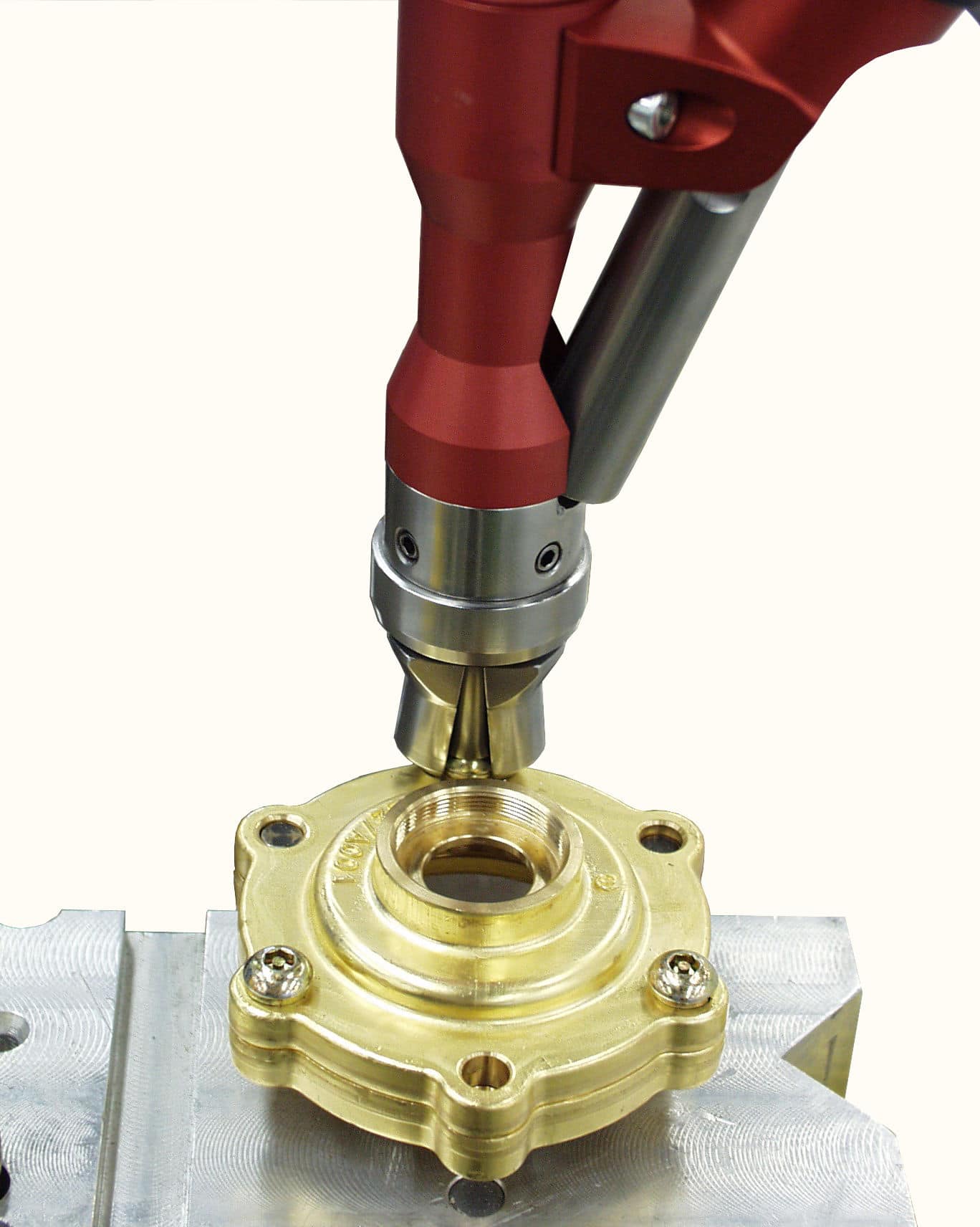

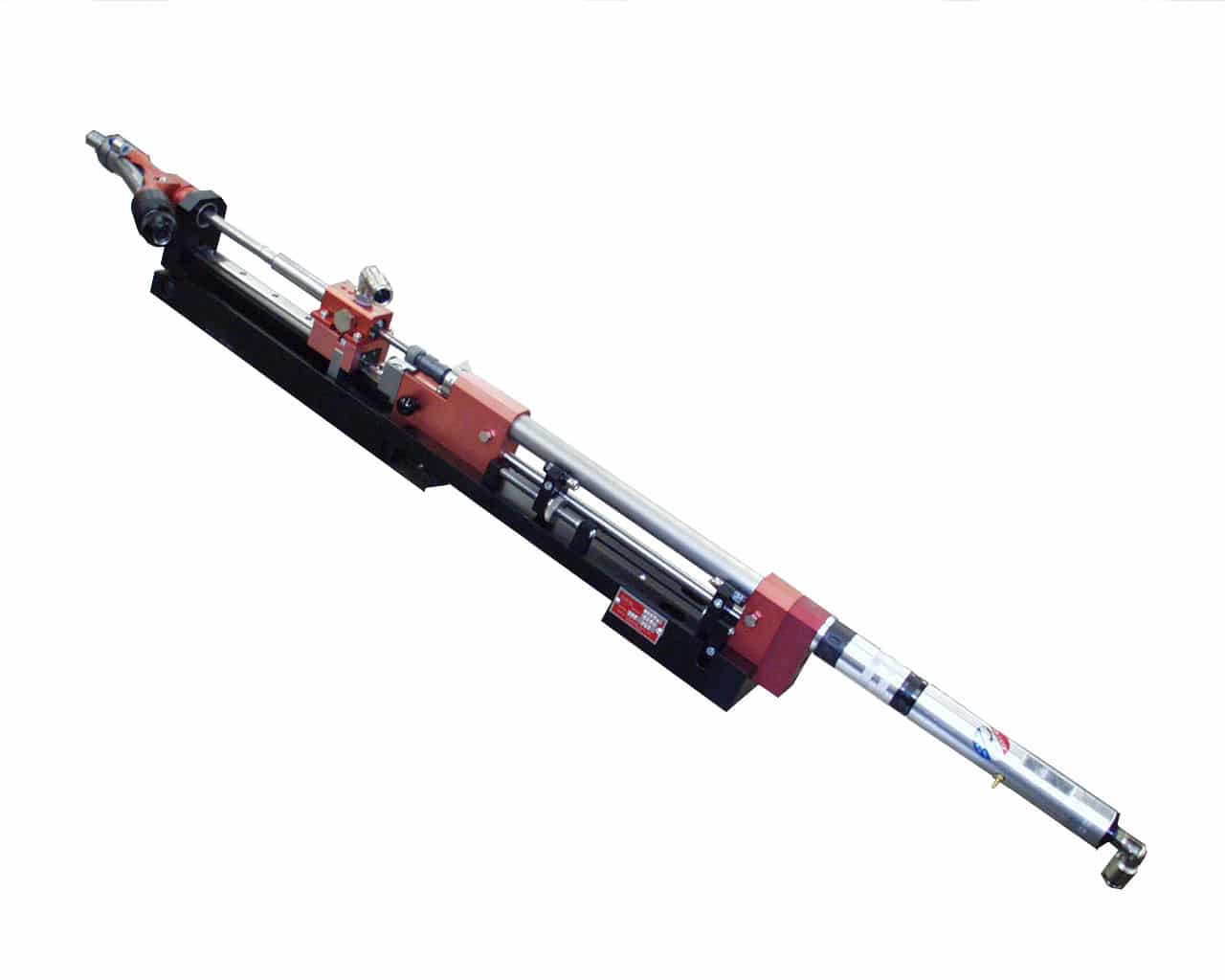

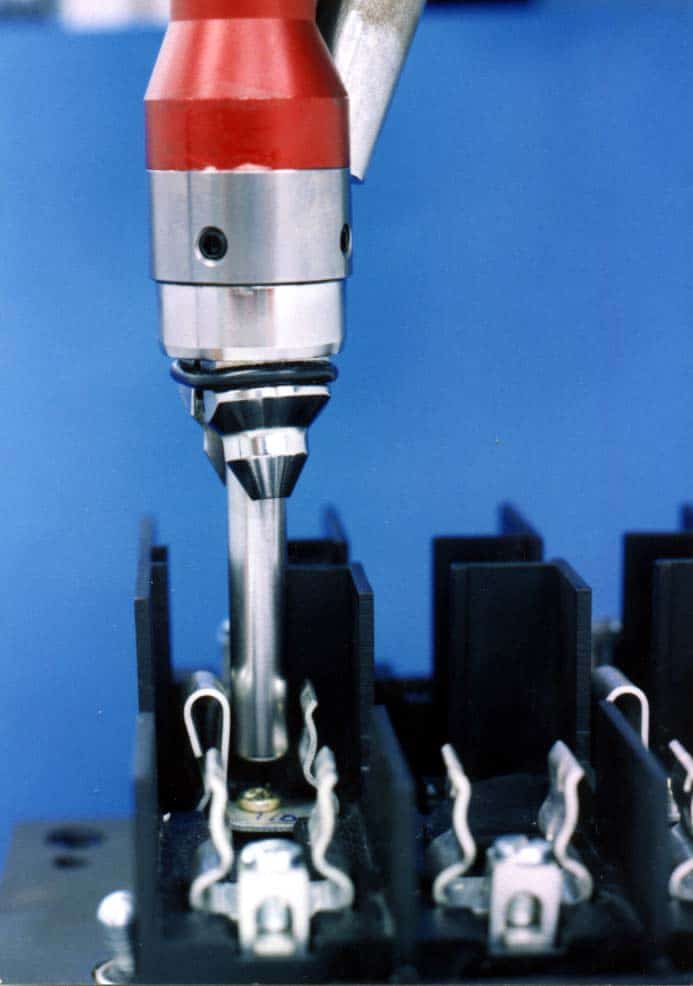

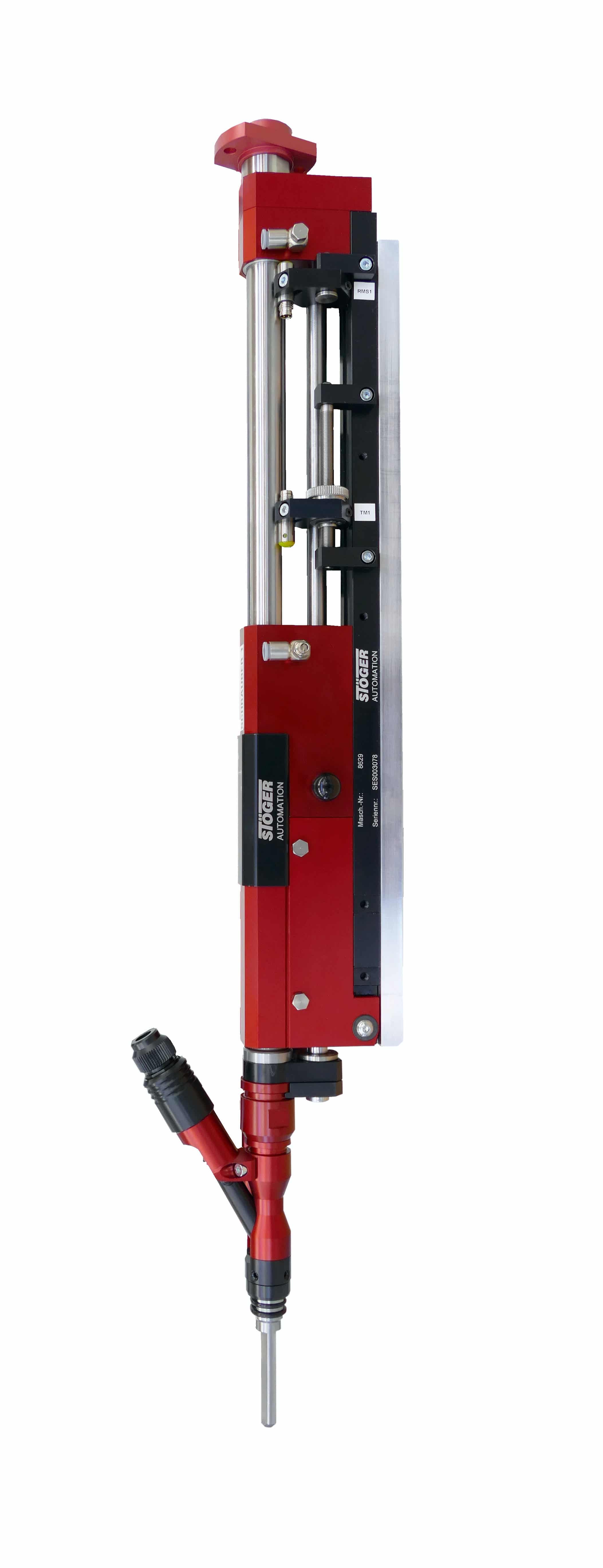

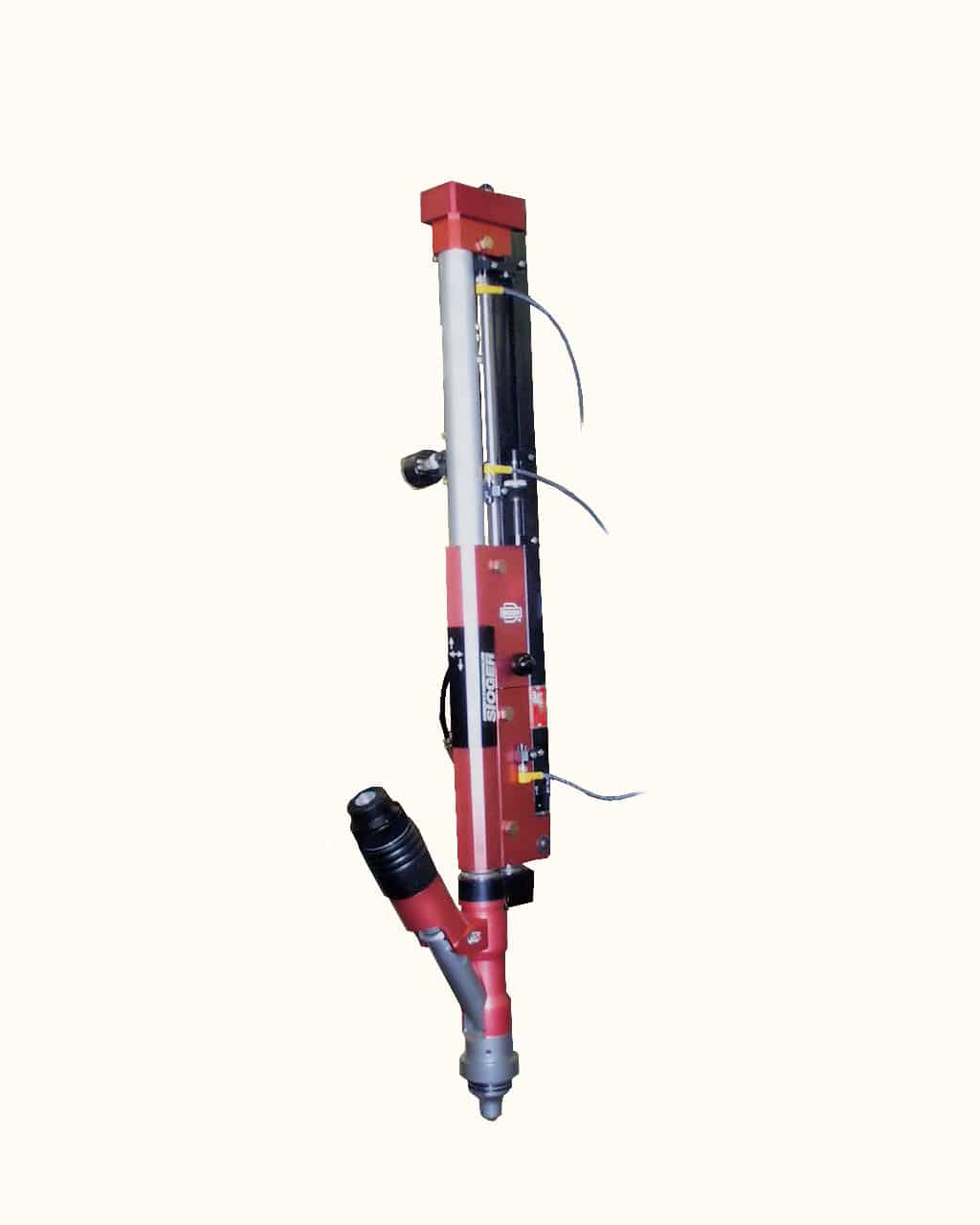

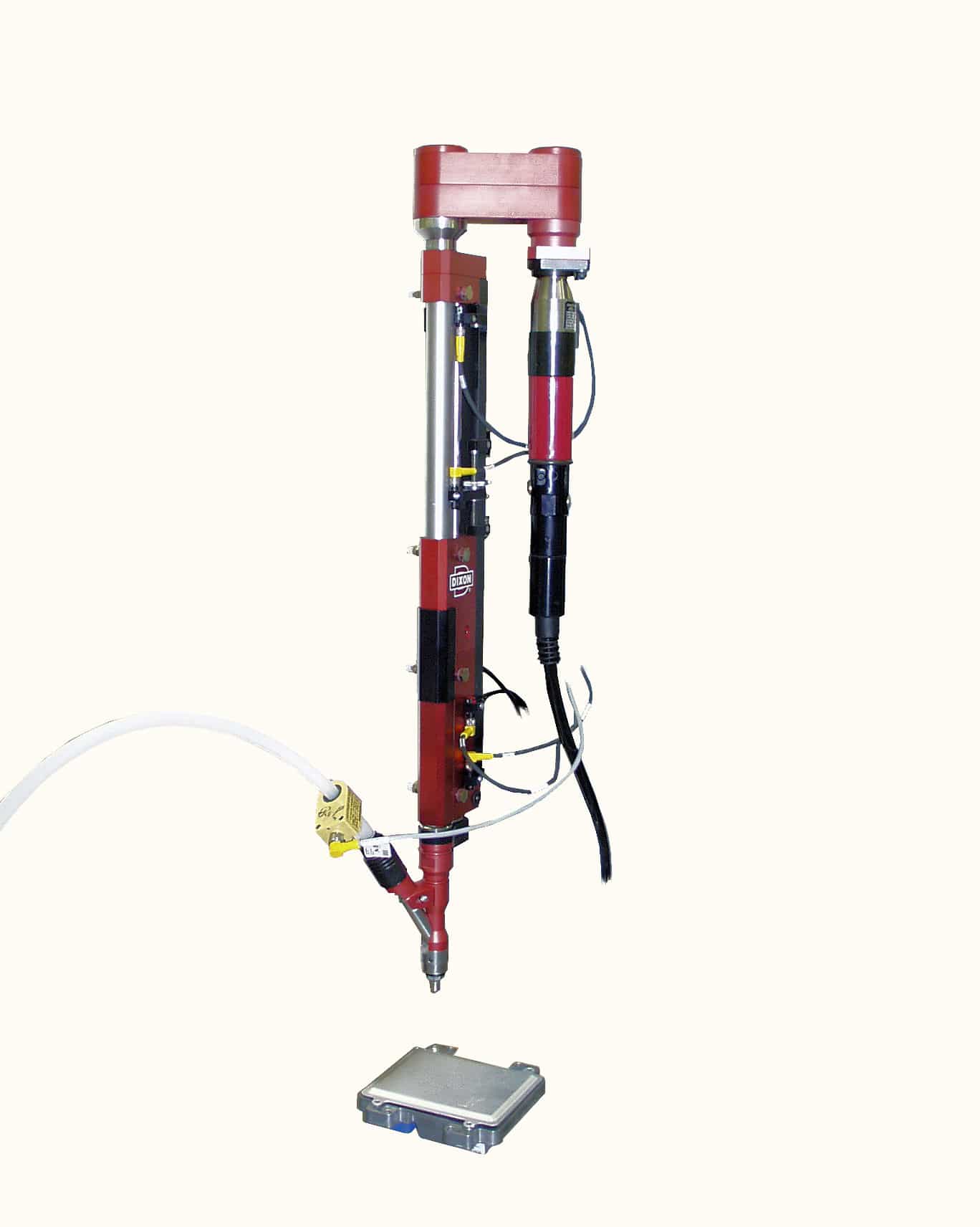

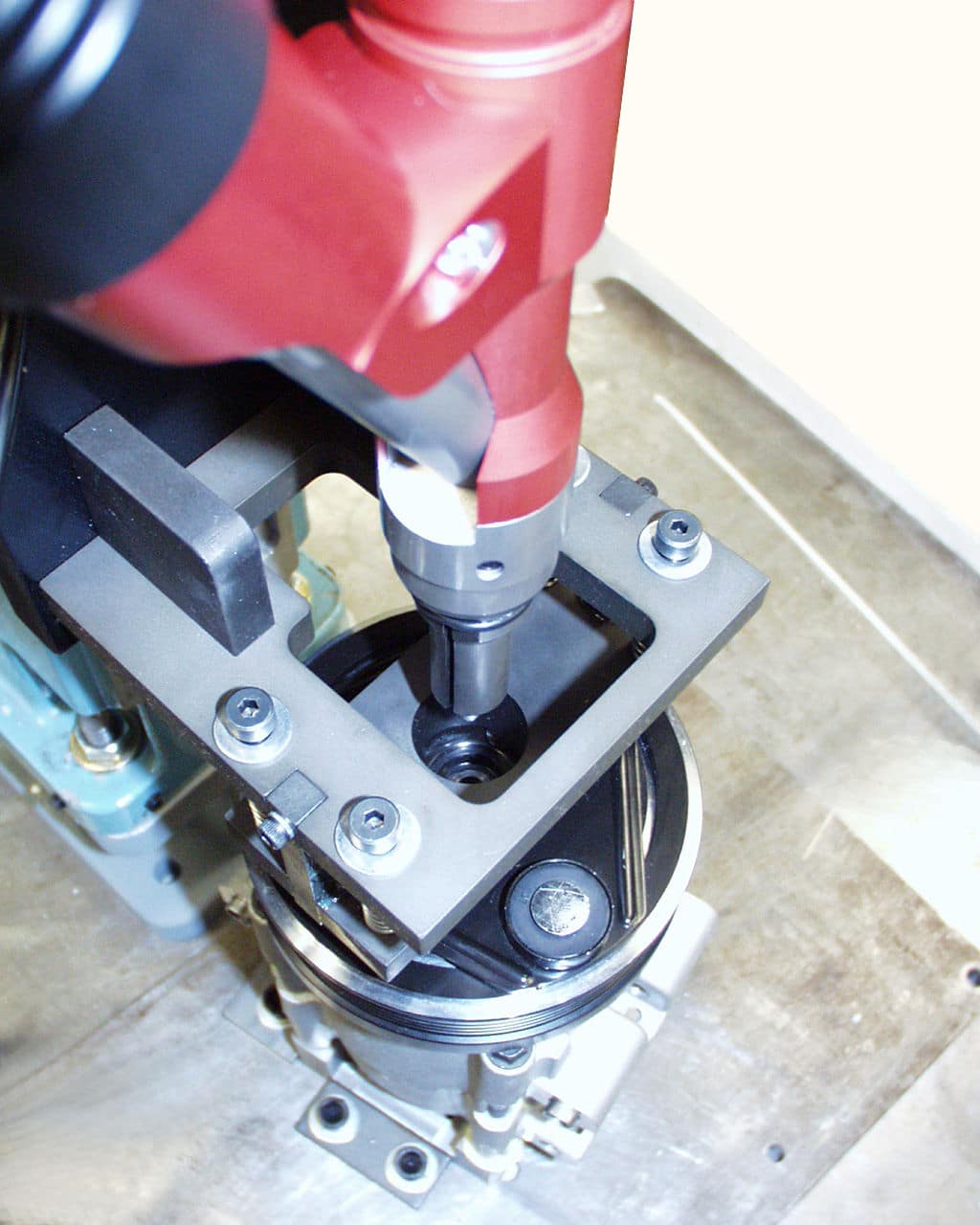

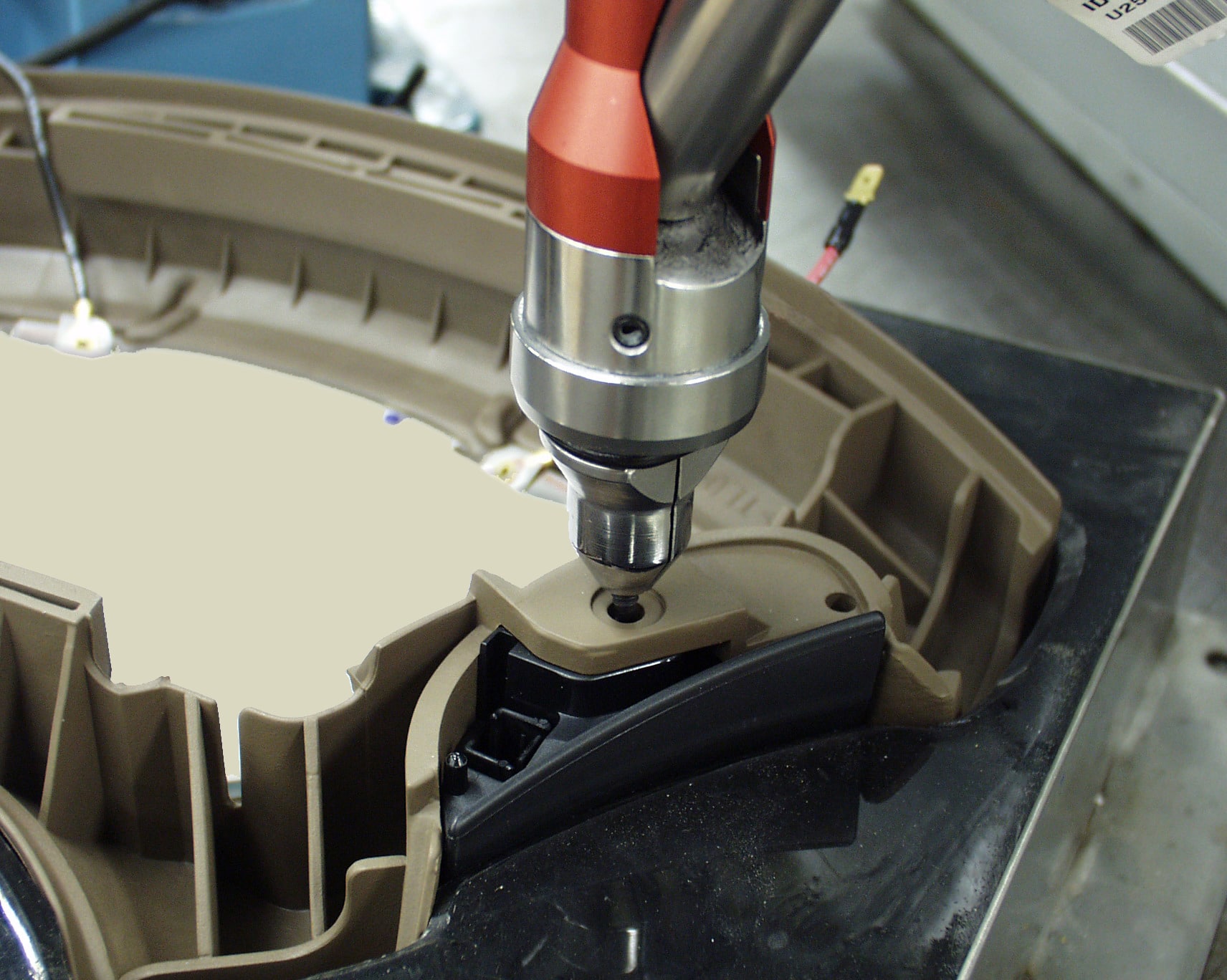

Premium Blow-fed Screwdrivers SES-Series

With a slim and low weight design allows these drivers to fit many different applications where access is limited or capable of putting multiple drivers in one process increasing the number of functions. Semi-automatic and fully automatic operations that can handle several different control functions such as; torque/angle, depth, cycle OK/NOT OK, and screw loading control. These drivers come in a wide range of torque with different stokes and a bit change which requires no tools that makes servicing quick and easy. These screwdrivers are highly efficient and can handle fast running systems making them capable of up to 80 cycles per minute. With vacuum versions available for the 3 largest units.

SES Blow-fed Screwdriver Technical Data
Model Torque Range Max Screw Head Dia. Max Screw Overall Length Head Thrust (min-max) Jaw Stroke/Spindle Stroke
SD-2010 / SES-1601 (dimensional drawing) .03- 1.6 Nm (1/4 – 14 in-lbs) 7mm (.275″) 30mm (1.180″) 13.5-23 lbs 15/80mm, 15/110mm, 30/110mm, 30/125mm
SD-2020 / SES-2001 (dimensional drawing) .2- 4.5 Nm (2 – 39 in-lbs) 11mm (.433″) 50mm (1.968″) 21-36 lbs 25/110mm, 25/150mm, 50/150mm, 50/175mm
SD-2030 / SES-2501 (dimensional drawing) .5- 12 Nm (5- 106 in-lbs) 15mm (.590″) 70mm (2.755″) 33-56.5 lbs 35/140mm, 35/180mm, 70/180mm, 70/215mm
SD-2040 / SES-3201 (dimensional drawing) 1.0 – 45 Nm (8- 398 in-lbs) 24mm (.944″) 100mm (3.937″) 54-92.5 lbs 50/180mm, 50/230mm, 100/230mm, 100/280mm
SD-2020 / SVS-2001 vacuum (dimensional drawing) .2- 4.5 Nm (2 – 39 in-lbs) 10mm   21-36 lbs
SD-2030 / SVS-2501 vacuum (dimensional drawing) .5- 12 Nm (5- 106 in-lbs) 14mm   33-56.5 lbs
SD-2040 / SVS-3201 vacuum (dimensional drawing) 1.0 – 45 Nm (8- 398 in-lbs) 23mm   54-92.5 lbs

Download Product PDF Request a Quote

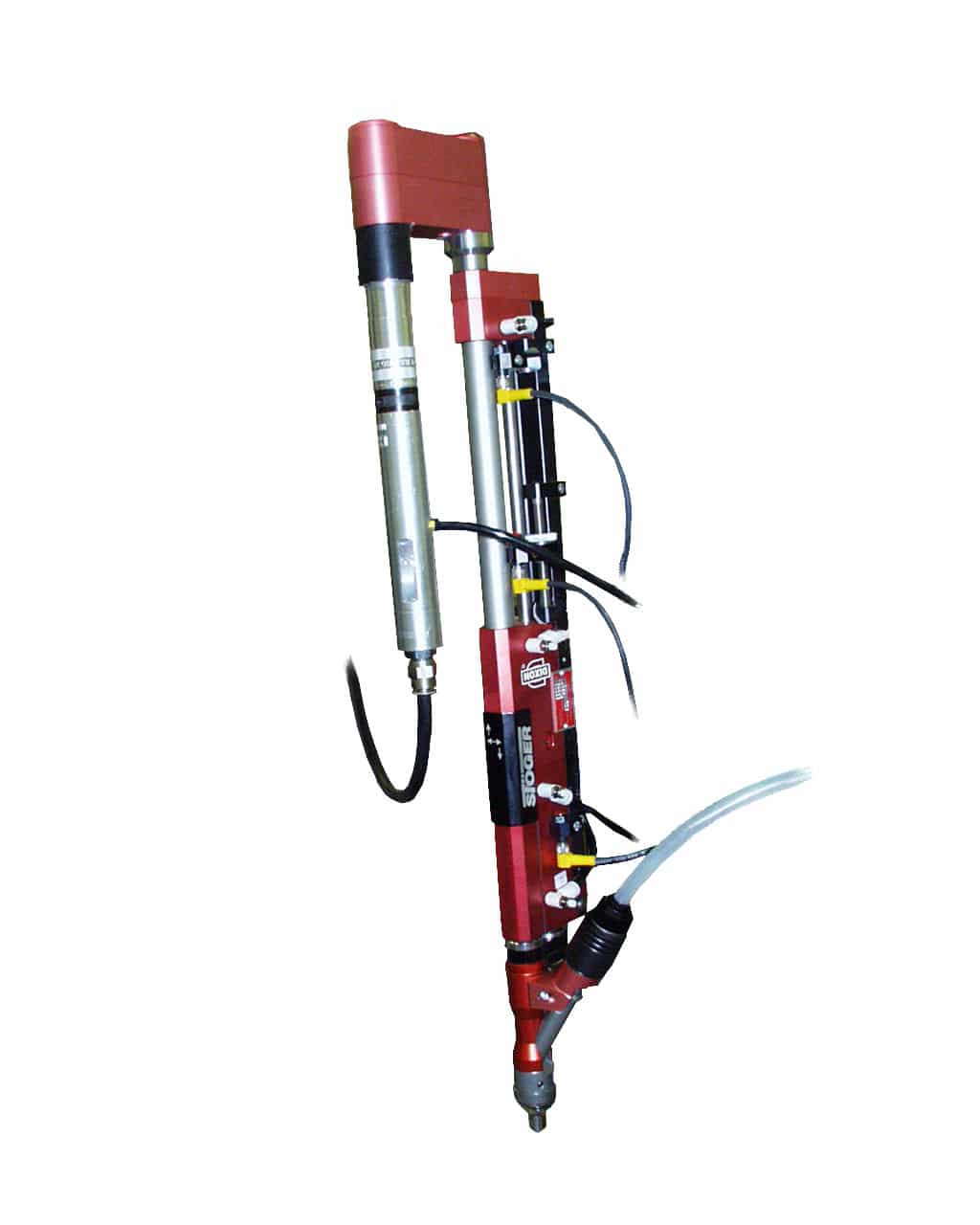

SES Series Blow-Fed Screwdriver
