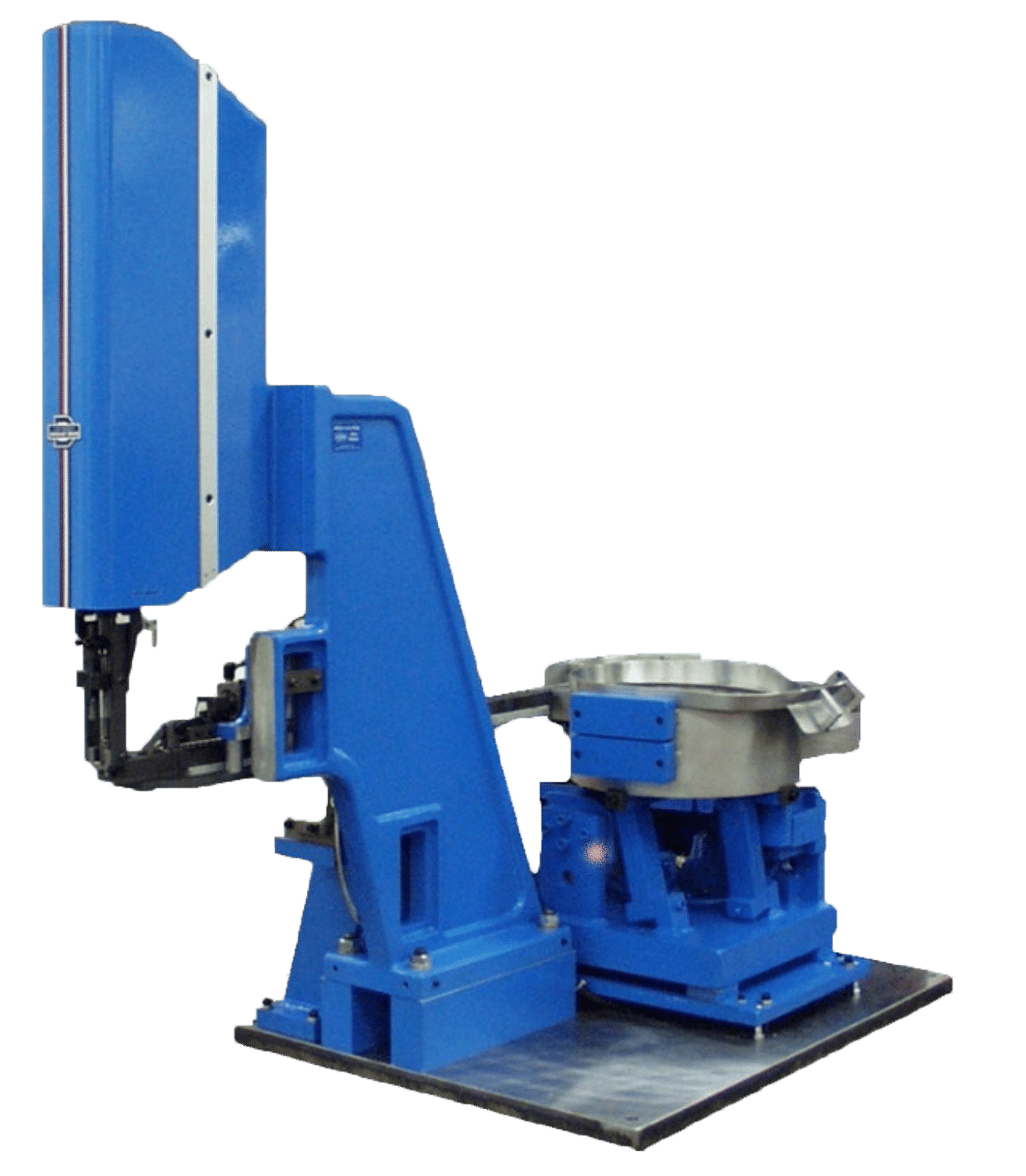

Model AP-127 Part Placer

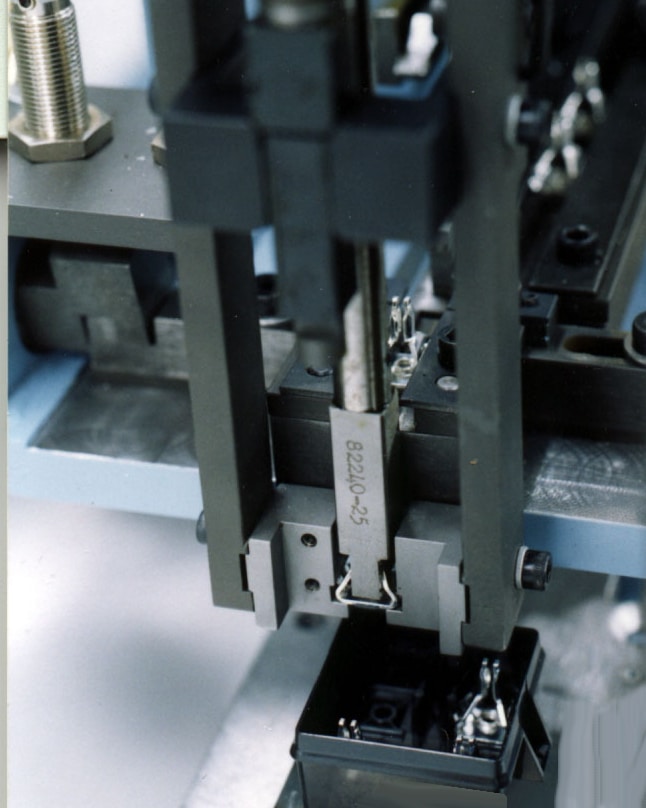

The Model AP-127 Part Placer is ideally suited for automated assembly systems. It is designed to place pieceparts. The Part Placer is fully automatic and equipped with a vibratory bowl feeder system, interlocking controls, hardened inclined steel track, and transfer escapement. The transfer escapement places each piecepart into the placer head’s placement jaws. The placement jaws hold the piecepart in position until the piecepart is engaged in the workpiece. The AP-127 provides a pressing force of 38.6 kilograms (85 pounds). A larger cylinder can be installed to increase the pressing force to 79 kilograms (175 pounds) depending on the placement force requirements. The baseplate size is determined by the size of the bowl feeder system.

Request a Quote Download Product PDF

Feed System Information
Feed System Vibratory Feeder Bowl
Bowl Size 228.6 – 914mm
(9 – 36 in.)
Track Inline Vibratory Fed Track
Escapement Air Escapement
Piece Part Information
Shank Diameter 2.84mm – 6.35mm
(.112 in. – .250 in.)
Shank Lengths Max 101.6mm
(4.0 in.)
Head Diameters Max 25.4mm
(1.0 in.)
Disc-Shaped Parts Max 64mm Diameter
(2.5 in.)
Contains all options from base head
100 Series Part Placer Head
