AP-111 Vibratory Feeder Bowl/Horizontal Track

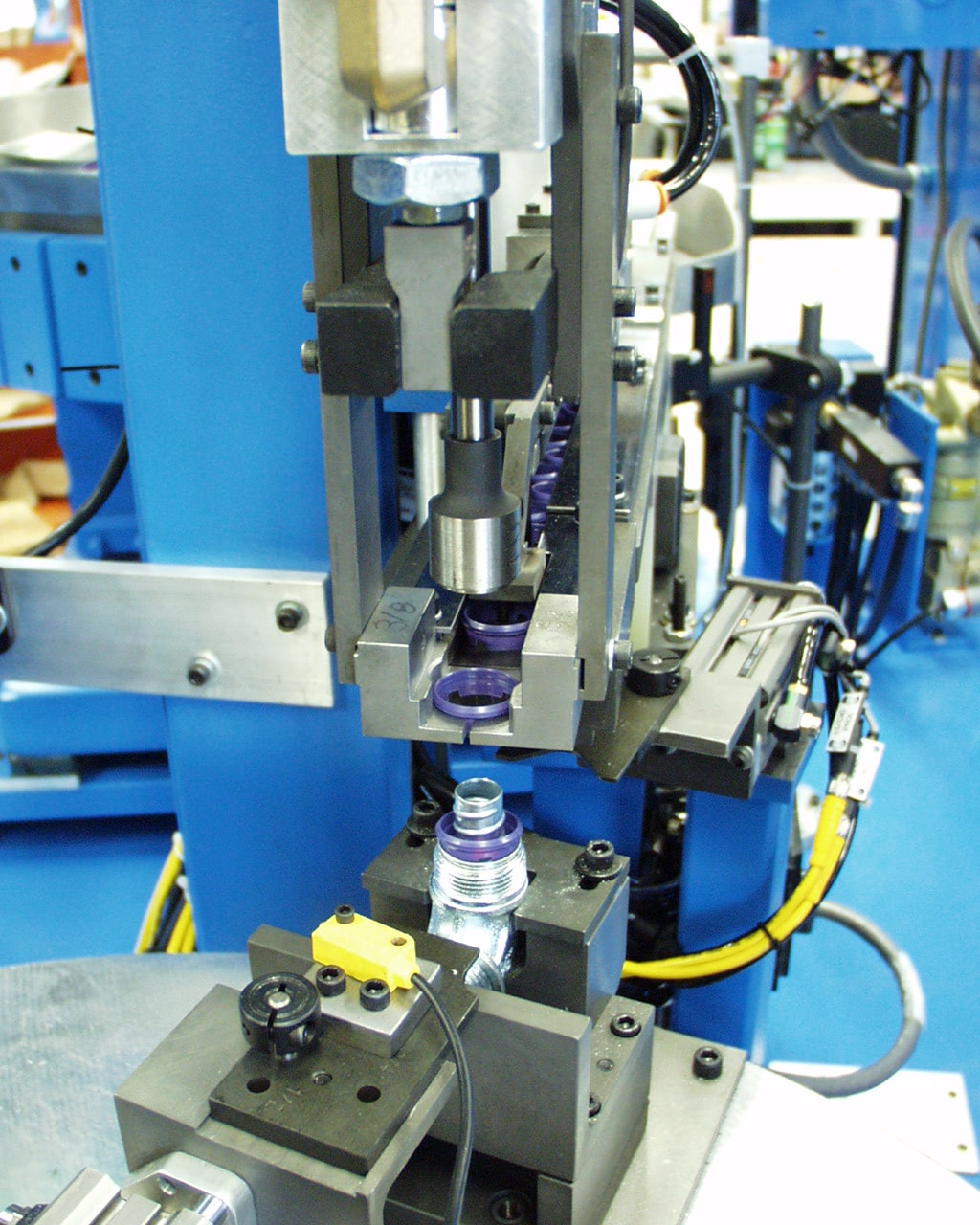

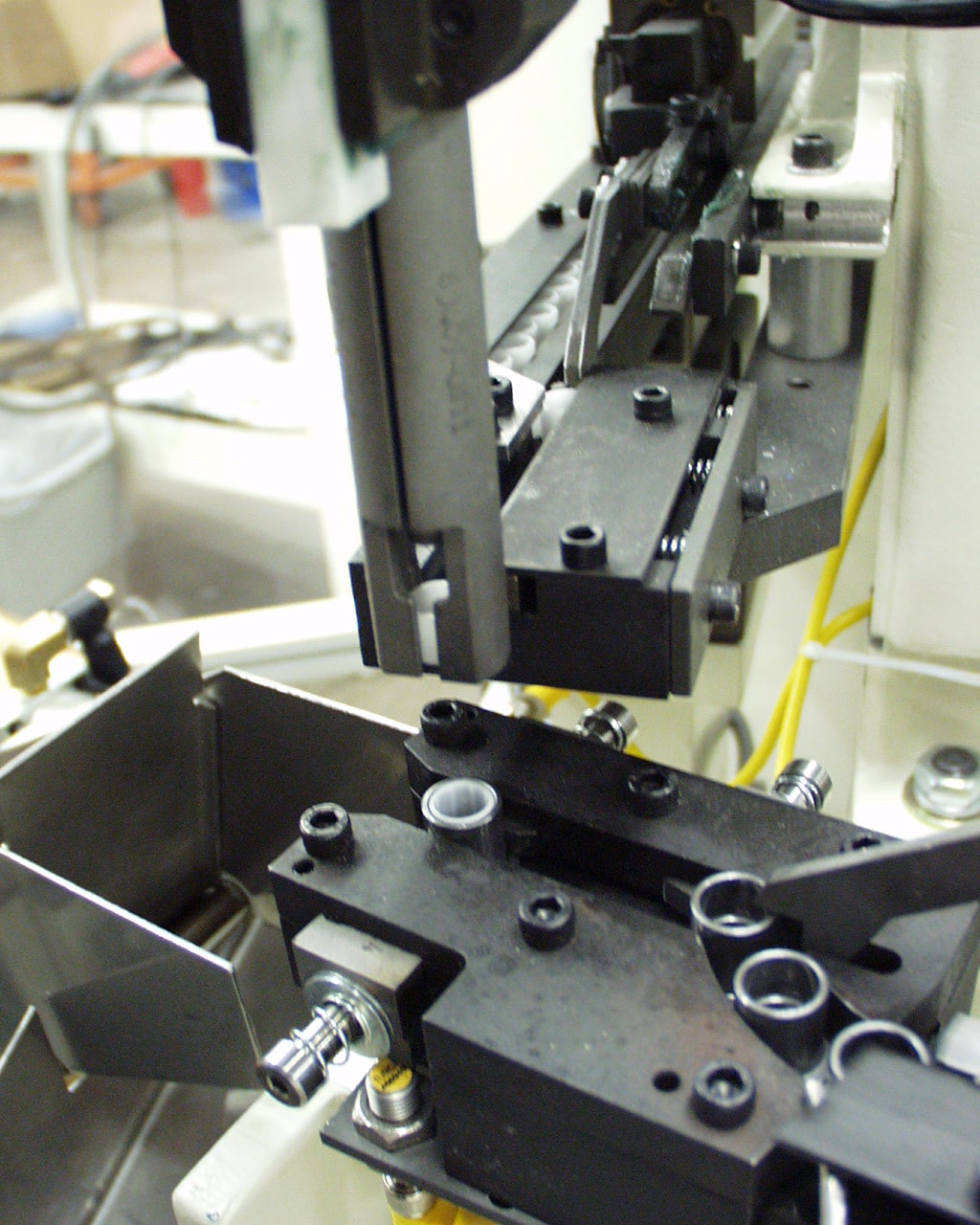

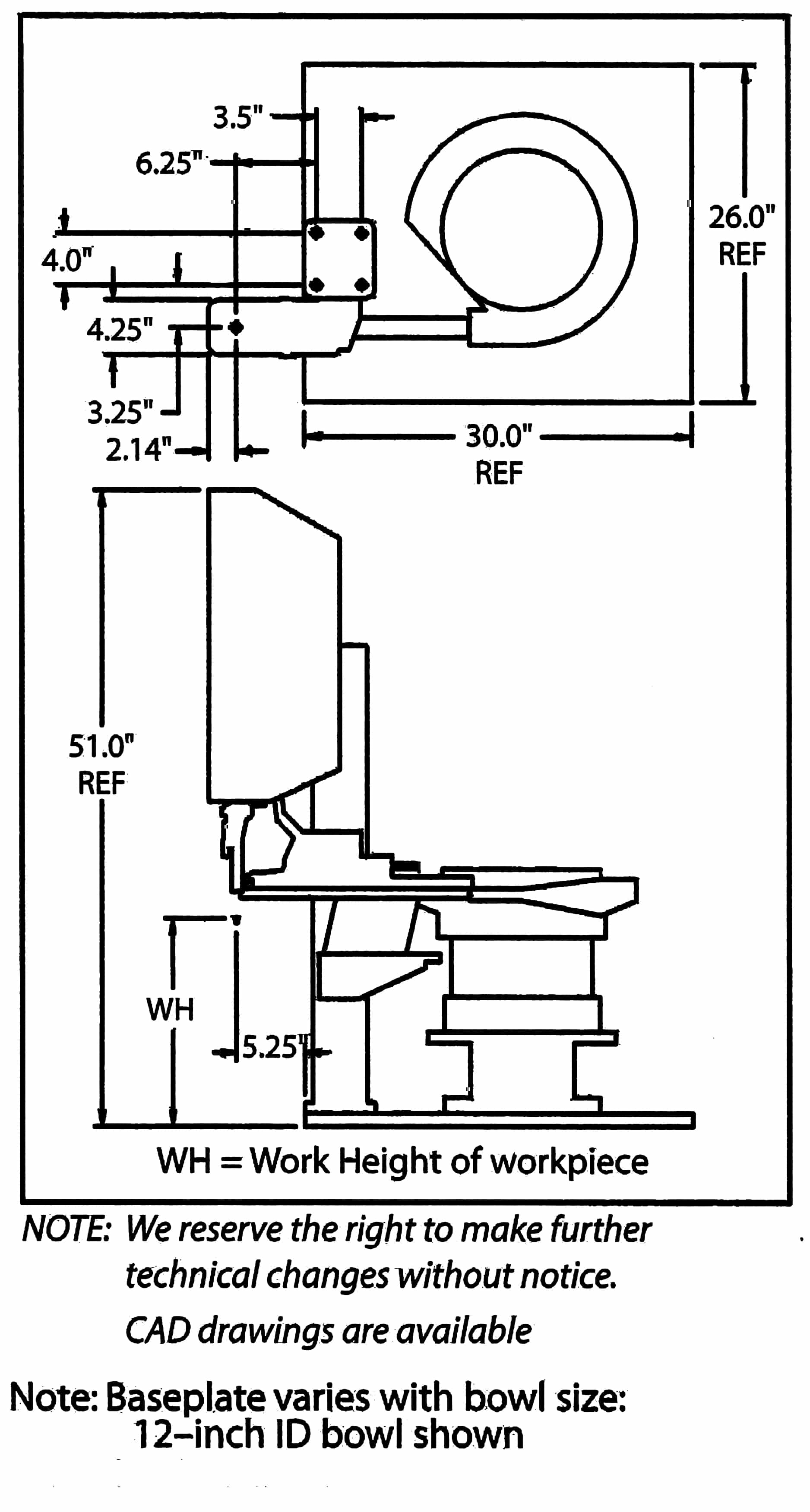

Fully automatic and equipped with a vibratory bowl feed system, a horizontal vibratory hardened feed track, transfer escapement, support column and interlocking controls. The head has a pressing force between 40-175 pounds. The placement head has built-in sensing to confirm proper placement of each piecepart. The placement jaws hold the piecepart in position until the piecepart is engaged in the workpiece. The baseplate size is determined by the size of the vibratory bowl feeder system. Control options can be selected to meet the requirement of each application. This model is ideally suited for automated assembly systems.

Request a Quote

Download Product PDF

Product Specifications

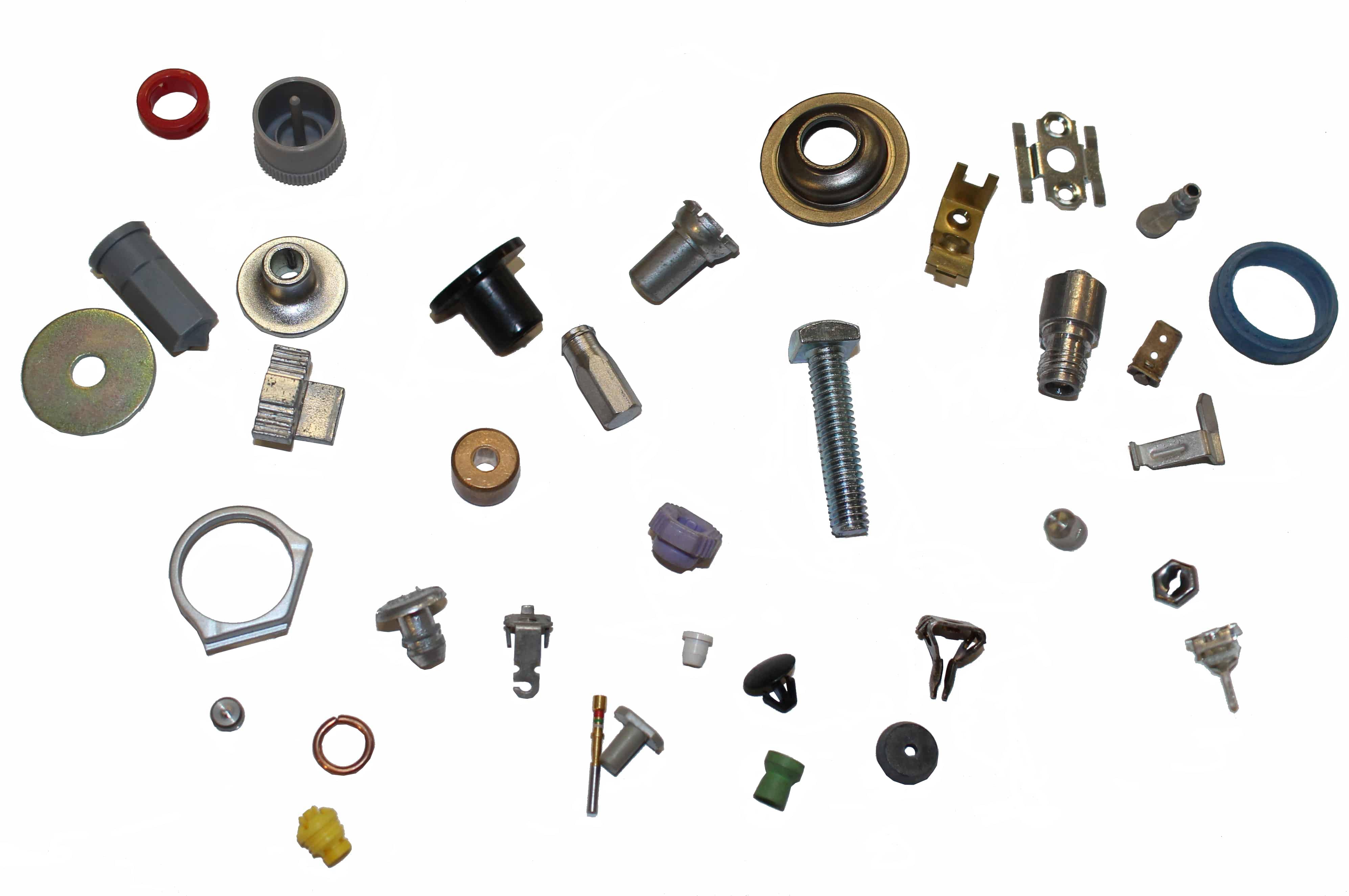

Piece Part Information
Shank Diameter .08 in. – 2.5 in. (2.0mm – 63.5mm)
Shank Lengths Max 4 in. (102mm)
Head Diameter Max 1 in. (25.4mm)
Disc-Shaped Parts Max 2.5 in. dia. (64mm)
Feed System Information
Feed System Vibratory Feeder Bowl
Bowl Size 6-36 in. (153-914mm)
Track Vibratory Inline

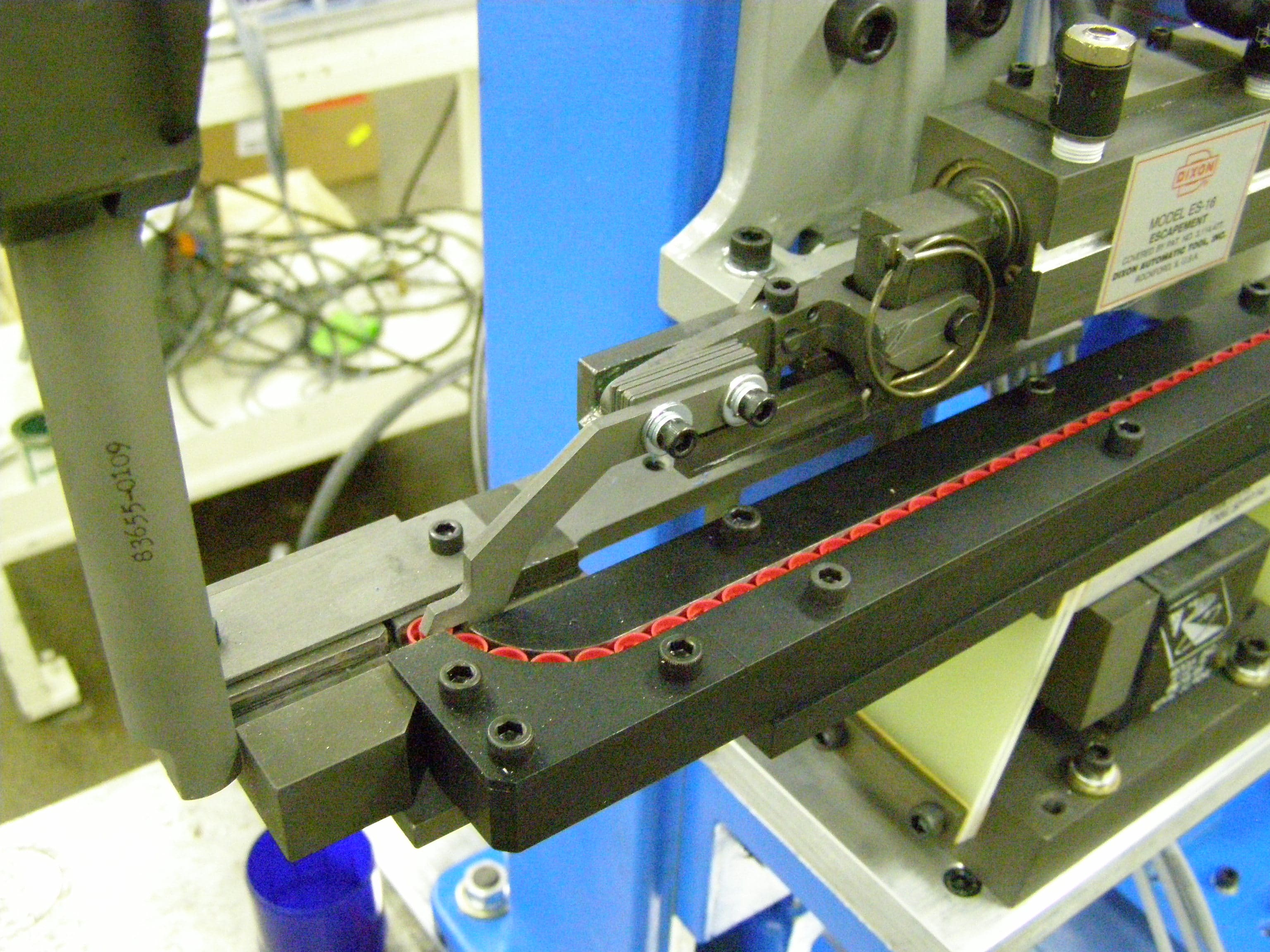

Escapement Transfer Escapement
Contains all options from base head

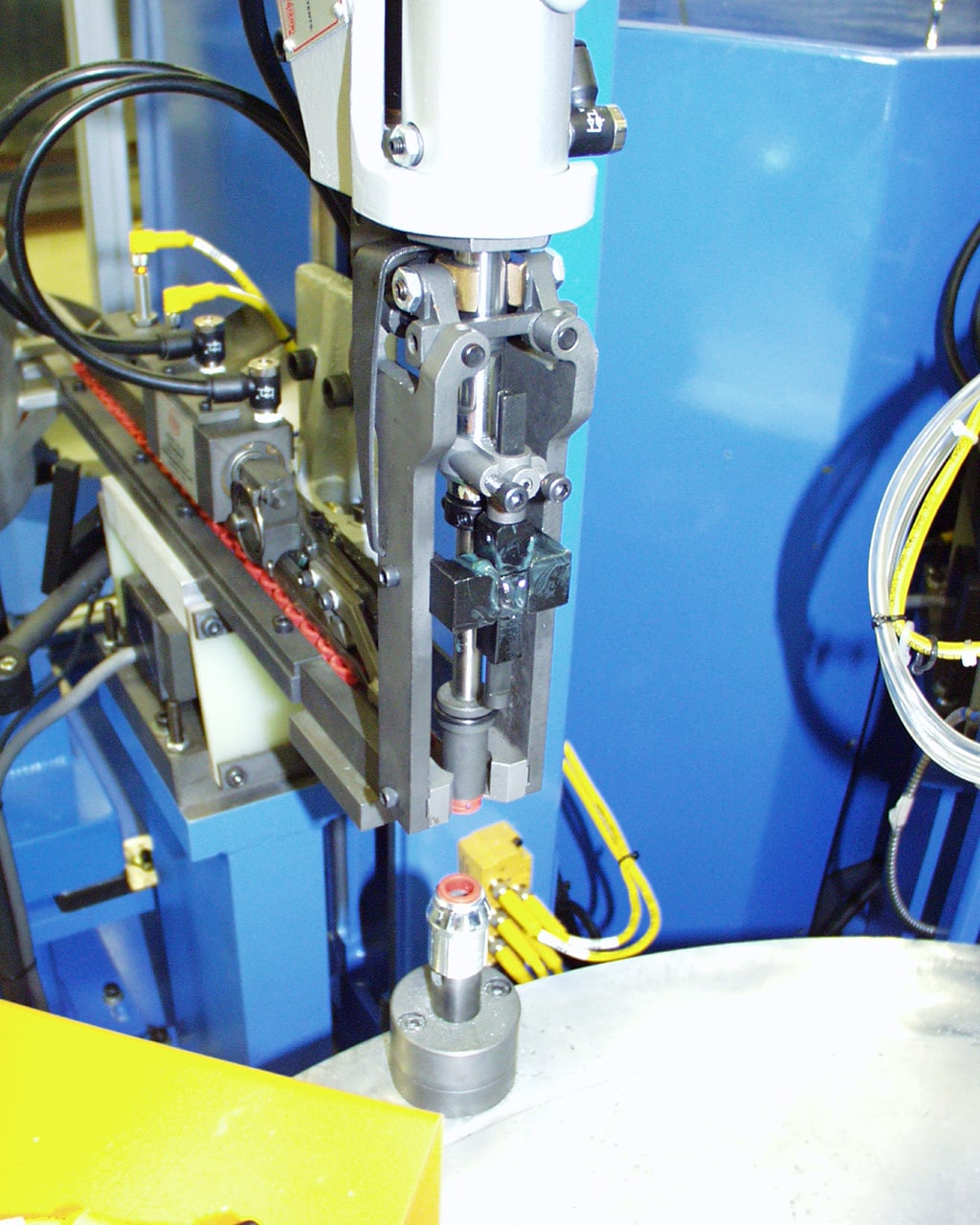

100 Series Part Placer Head
