Model AP-107 Part Placer With Rotary Hopper

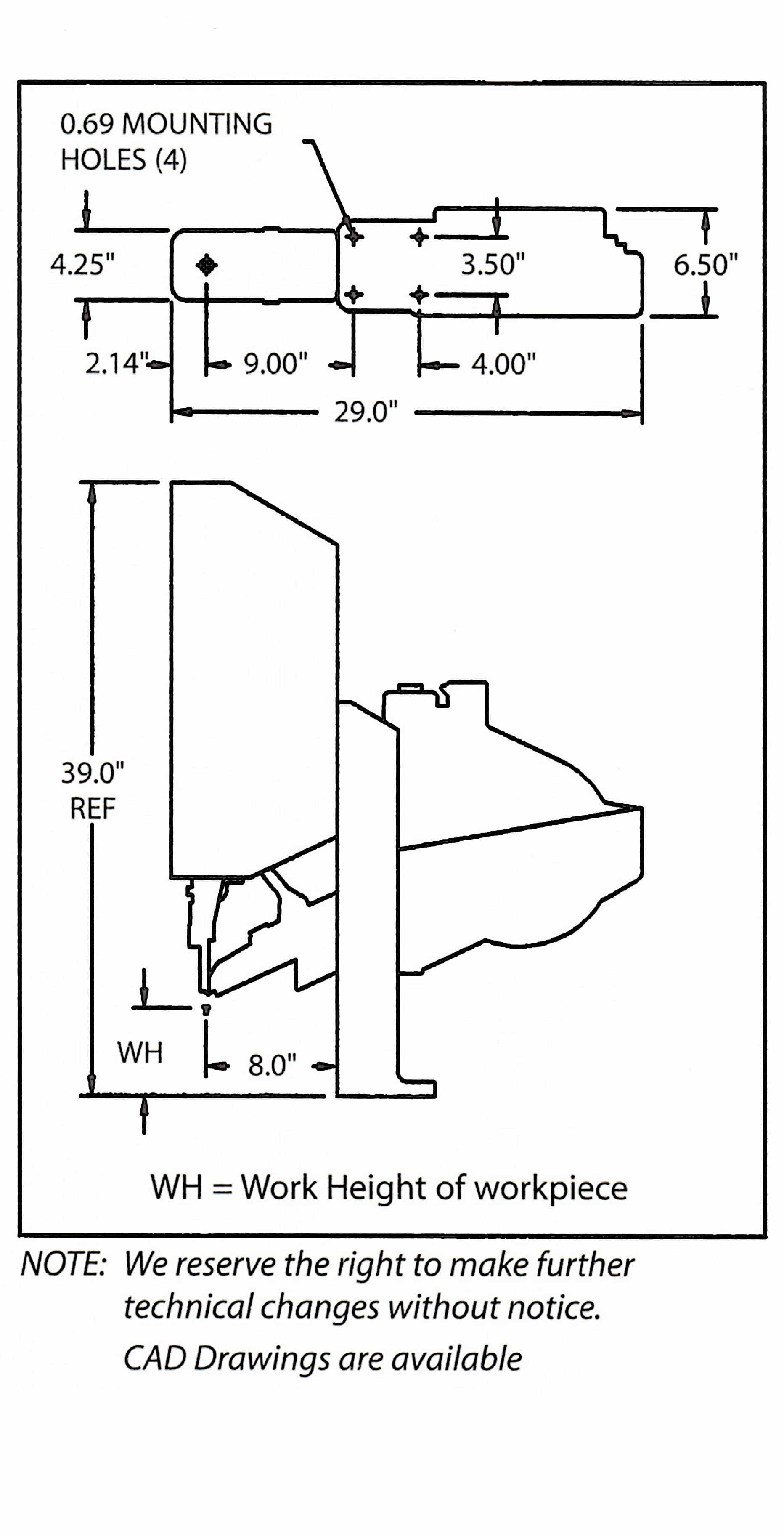

Model AP-107 Part Placer

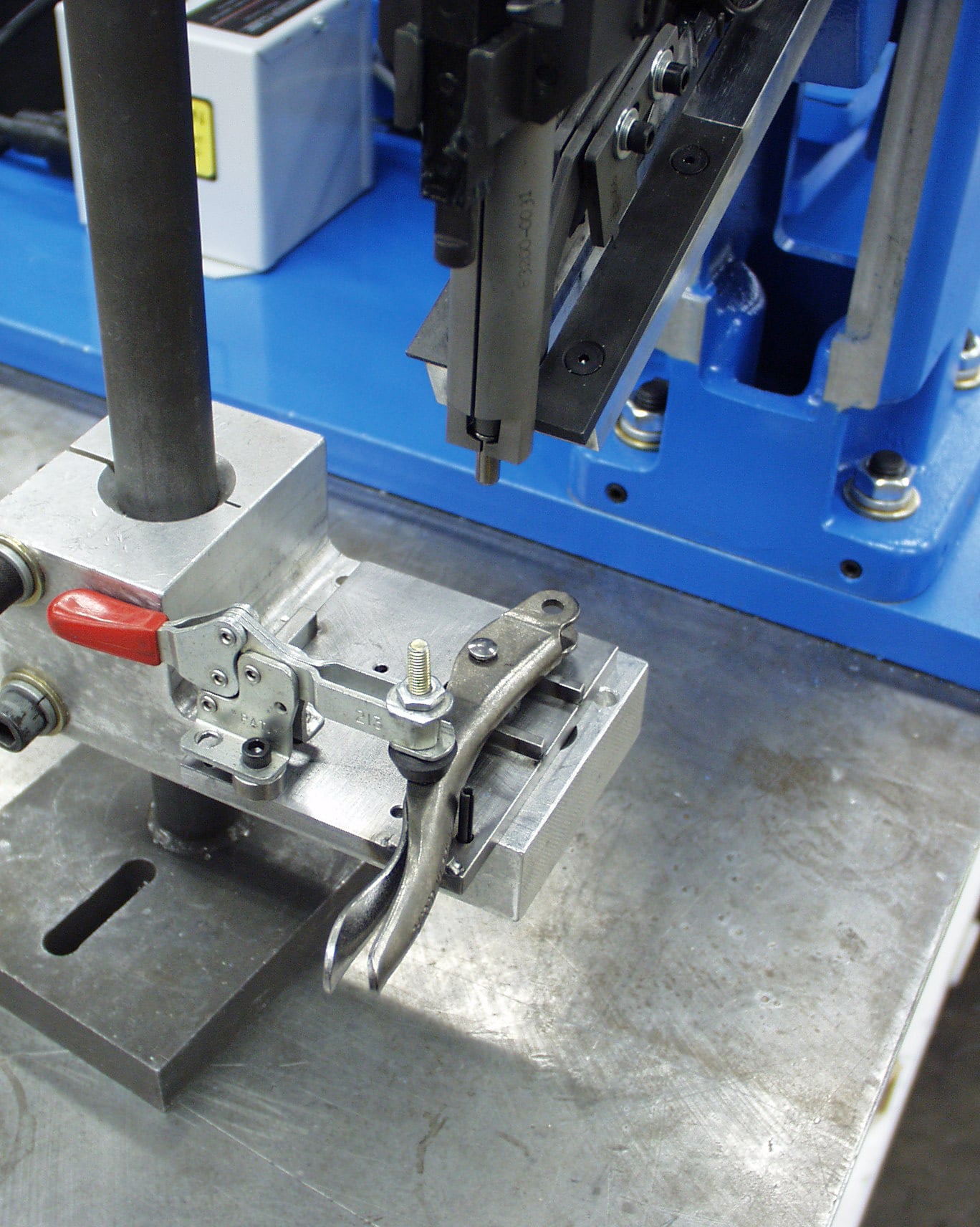

This AP-107 Part Placer is well suited to place headed pieceparts for semi-automated assembly operations. The Part Placer has a motor driven rotary parts hopper, an inclined hardened steel track, a support column, a transfer escapement, and interlocking controls. The escapement places each piecepart into the placer head’s placement jaws. To ensure accurate placement, the placement jaws hold each piecepart until the piecepart is engaged in the workpiece. The AP-107 provides a pressing force of 38.6 kilograms (85 pounds). A larger cylinder can be installed to increase the pressing force to 79 kilograms (175 pounds) depending on the placement force requirements. The placement head has built-in sensing to confirm proper placement of the each piecepart.

Request a Quote Download Product PDF

Feed System Information
Feed System Rotary Drum Hopper
2458 cubic cm.
(150 cubic in.)
Track Incline Gravity Fed Track
Escapement Mechanically Linked
Optional Air Escapement
Piece Part Information

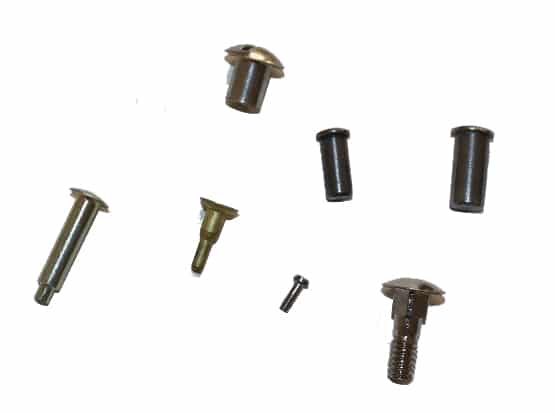

Shank Diameter 2.8mm – 6.35mm
(.110 in. – .25 in.)
Shank Lengths Max 25.4mm
(1.0 in.)
Head Diameters Max 14mm
(.56 in.)
Contains all options from base head
100 Series Part Placer Head
